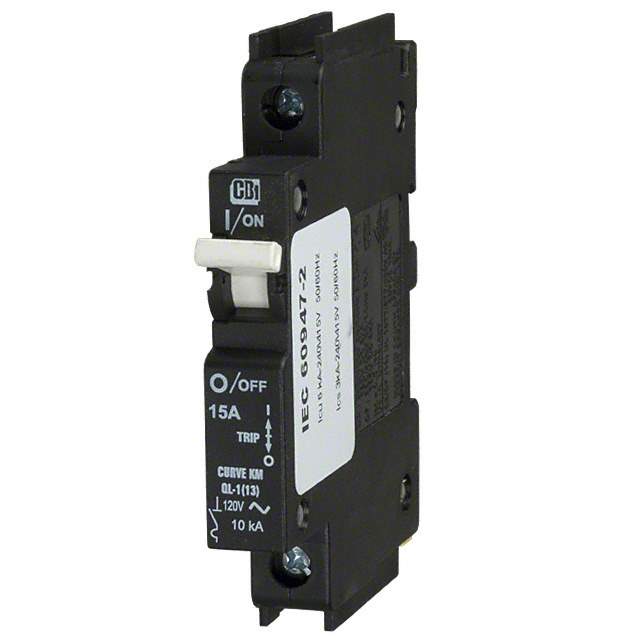

C15A1P-489 Real Image
Same model may have multiple batches, images only for reference.

C15A1P-489

Part No C15A1P-489
Manufacturer American Electrical Inc.
Catalog Circuit Breakers
Description CIR BRKR MAG-HYDR 15A 240VAC / Circuit Breaker Magnetic (Hydraulic Delay) 15A 240 V AC DC Lever DIN Rail
Datasheet
C15A1P-489 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Circuit Breakers
Mfr American Electrical Inc.
Package Box
Mounting Type DIN Rail
Breaker Type Magnetic (Hydraulic Delay)
Current Rating (Amps) 15A
Voltage Rating - AC 240 V
Actuator Type Lever
Number of Poles 1
Approval Agency CE, UL489, UR
Base Product Number C15A1P
Standard Package 12
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.20.0020
Win Source Part Number 1340440-C15A1P-489
Ultra Librarian 3D Model Ultra Librarian C15A1P-489 CAD Model

Description

The American Electrical Inc. 1340440-C15A1P-489, is a circuit breaker with a current rating of 15A and a voltage rating of 240VAC.

  • Current Rating: 15A
  • Voltage Rating: 240VAC
  • Breaker Type: Magnetic (Hydraulic Delay)
  • Mounting Type: DIN Rail
  • Package: Box
  • Illumination: Illuminated
  • Actuator Type: Lever
  • Win Source Part Number: 1340440-C15A1P-489
