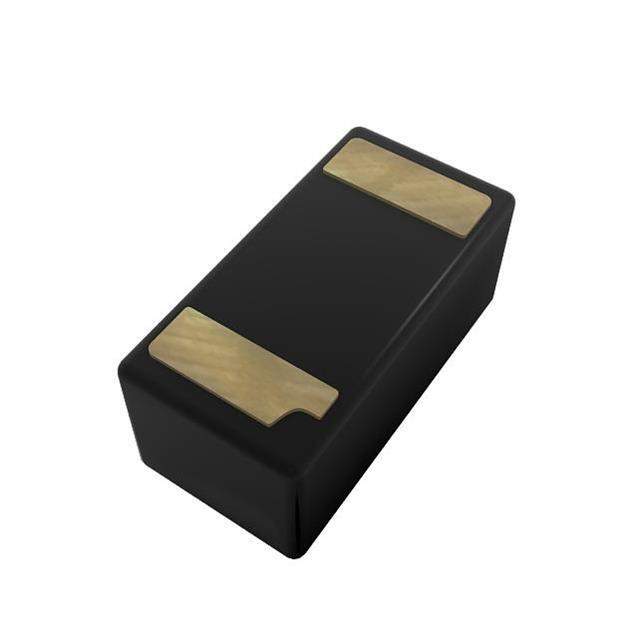

AZ5A23-01F Real Image
Same model may have multiple batches, images only for reference.

AZ5A23-01F

Part No AZ5A23-01F
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DEVICE 1-CHANNEL 3.3V  /  Clamp Ipp Tvs Diode Surface Mount DFN0603P2Y
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 3.8V
Power Line Protection No
Applications General
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DFN0603P2Y
REACH Status Vendor Undefined
Other Names 4430-AZ5A23-01FCT,4430-AZ5A23-01FTR,4430-AZ5A23-01FTR-ND
Win Source Part Number 1106728-AZ5A23-01F
Ultra Librarian 3D Model Ultra Librarian AZ5A23-01F CAD Model

Description

The 1106728-AZ5A23-01F is a Zener type TVS diode designed for general applications.

  • Type: Zener TVS Diode
  • Application: General
  • Channel: Bidirectional
  • Reverse Standoff Voltage: 3.3V
  • Breakdown Voltage: 3.8V
  • Packaging: Cut Tape (CT)
  • Mounting Style: SMD (SMT)
  • Power Line Protection: Maximum
  • Package/Case Size: 0201 (0603 Metric)
  • Supplier Device Package: DFN0603P2Y
  • Temperature Range: -55°C ~ 85°C (TC)
  • Manufacturer: Amazing
