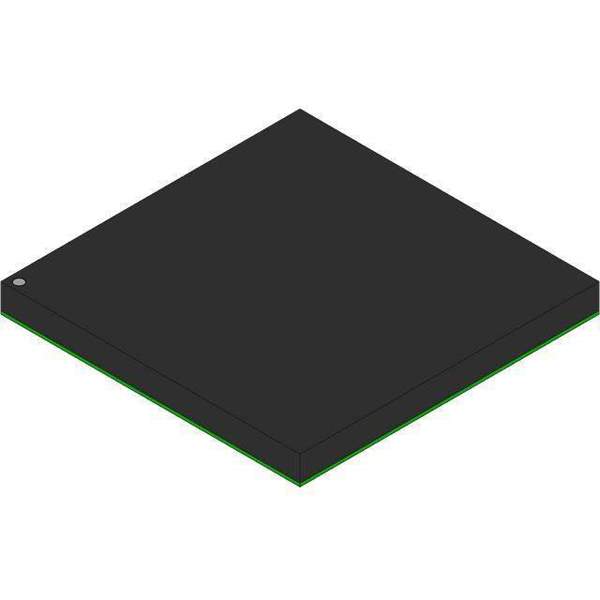

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Tray
Product Status Obsolete
Core Type 32-Bit ARM9
Speed 200 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 128K
Data SRAM Bytes 64K
FPGA Core Cells 16640
FPGA Gates 400K
Voltage - Supply 1.8V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C
Package / Case 1020-BBGA, FCBGA
Supplier Device Package 1020-FBGA (33x33)
RoHS Status RoHS non-compliant
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names 2156-EPXA4F1020C2-AL,ALTALTEPXA4F1020C2
Standard Package 4
Win Source Part Number 1026611-EPXA4F1020C2
Ultra Librarian 3D Model Ultra Librarian EPXA4F1020C2 CAD Model

Description

This electronic component is a Win Source Part Number 1026611-EPXA4F1020C2.

  • It is an integrated circuit that belongs to the Excalibur™ series.
  • This component is a field-programmable gate array (FPGA) with microcontrollers that provides high-speed performance and reliability.
  • It comes with a range of features that make it highly versatile and user-friendly.
  • The component is easy to install and is compatible with a variety of devices.
  • It is a great choice for anyone looking for a reliable and high-performance electronic component.
