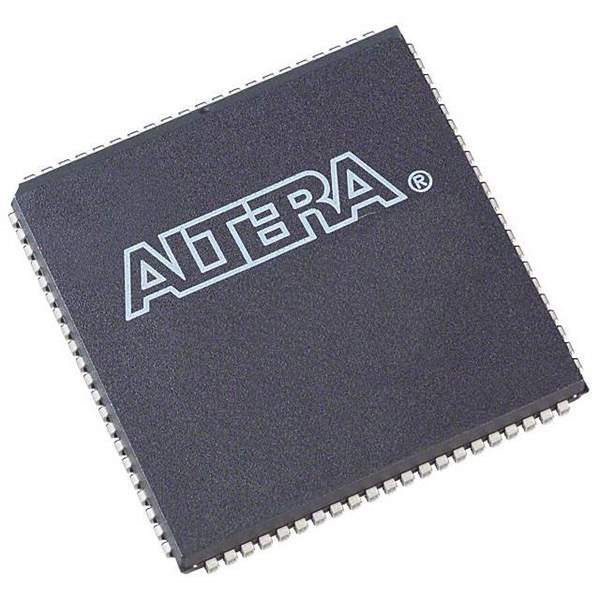

EPM7160SLC84-7 Real Image1 EPM7160SLC84-7 Real Image2
Same model may have multiple batches, images only for reference.
EPM7160SLC84-7 Real Image1 EPM7160SLC84-7 Real Image2
EPM7160SLC84-7 Real Image1 EPM7160SLC84-7 Real Image2
Same model may have multiple batches, images only for reference.

EPM7160SLC84-7

Part No EPM7160SLC84-7
Manufacturer Altera
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 160MC 7.5NS 84PLCC / CPLD MAX® 7000S Family 3.2K Gates 160 Macro Cells 122MHz 5V 84-Pin PLCC Tube
Datasheet
EPM7160SLC84-7 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series MAX 7000S
Packaging Tube
Part Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 4.75 V ~ 5.25 V
Number of Logic Elements/Blocks 10
Number of Macrocells 160
Number of Gates 3200
Number of I/O 64
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 84-LCC (J-Lead)
Manufacturer Package 84-PLCC (29.31x29.31)
Win Source Part Number 774175-EPM7160SLC84-7
Popularity Medium
Supply and Demand Status Limited
Quantity per package 15
Family Name EPM7160S
Introduction Date October 02, 1998
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EPM7160SLC84-7 CAD Model

Description

The Altera EPM7160SLC84-7 is an in-system programmable device from Altera.

  • Gates: 3200
  • I/O Pins: 64
  • Voltage Supply: 4.75 V to 5.25 V
  • Delay Time (tpd(1) Max): 7.5ns
  • Series: MAX 7000S
  • Package: 84-LCC (J-Lead)
  • Logic Elements/Blocks: 10
  • Macrocells: 160
  • Status: Obsolete (EOL)
  • Supply/Demand: Limited
  • Compliance: Halogen-free
  • Popularity: Medium
  • Applications: Integrated Circuit
