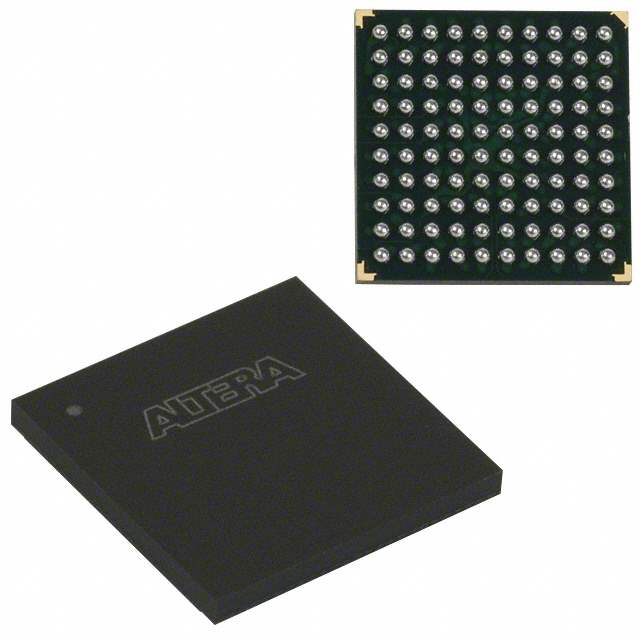

EPM570F100C5N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Packaging Tray
Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 5.4ns
Voltage Supply - Internal 2.5V, 3.3V
Number of Logic Elements/Blocks 570
Number of Macrocells 440
Number of I/O 76
Temperature Range - Operating 0°C to 85°C (TJ)
Mounting SMD (SMT)
Case / Package 100-FBGA (11x11)
Win Source Part Number 203901-EPM570F100C5N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 176
Family Name EPM570
Introduction Date December 21, 2004
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian EPM570F100C5N CAD Model

Description

The EPM570F100C5N stands out as a high-capacity CPLD engineered for efficiency in delivering complex logic operations. It is tailored to manage substantial computation while sustaining low energy consumption.

Applications and Projects

  • Security systems
  • Prototyping and testing platforms
  • Signal analysis equipment
  • Data acquisition systems

Features and Benefits

  • Scalable logic solutions to meet project demands
  • Compact form with 100-pin support
  • Efficient in both power and performance merging precision with economy
  • Broad temperature range compatibility for various environmental applications

The EPM570F100C5N is designed to simplify intricate logic tasks, allowing engineers to efficiently prototype and deploy their digital systems within multiple application areas.
