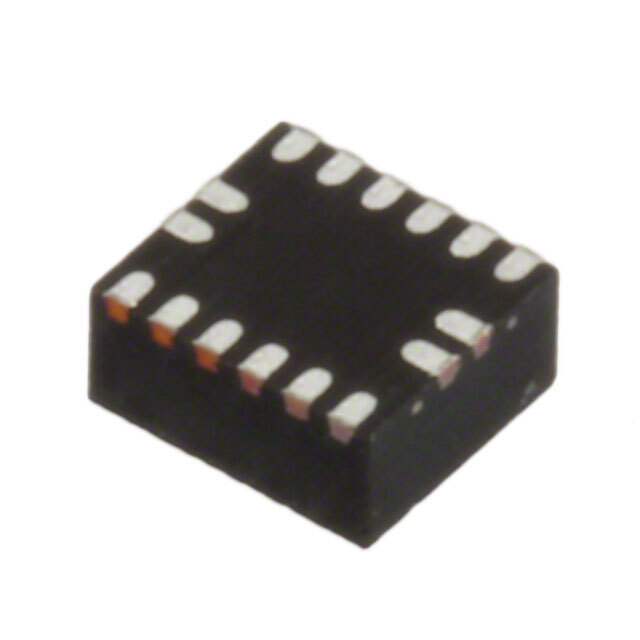

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Altera
Standard Package 1
Category Power Supplies - Board Mount
Family DC DC Converters
Series 5300
Packaging Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.6 ~ 5 V
Current - Output (Max) 1A
Applications ITE (Commercial)
Features Remote On/Off OCP OTP SCP UVLO
Mounting Style SMD/SMT
Package 16-QFN
Size / Dimension 0.12" L x 0.12" W x 0.04" H (3.0mm x 3.0mm x 1.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Catalog Enpirion 5300 Series
Win Source Part Number 083563-EP53A7LQI
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EP53A7LQI CAD Model

Description

EP53A7LQI

The EP53A7LQI is a compact power supply solution optimized for small footprint applications. It ensures excellent thermal performance and stability, making it ideal for high-performance computing environments.

  • Applications and Projects:
    • Portable electronics
    • Networking devices
    • Embedded systems
  • Features and Benefits:
    • Highly integrated with minimal external components
    • Fast transient response
    • Output voltage programmable via pin configuration
    • Over-current protection
  • Additional Details:
    • Total solution size under 50mm2
    • RoHS compliant
