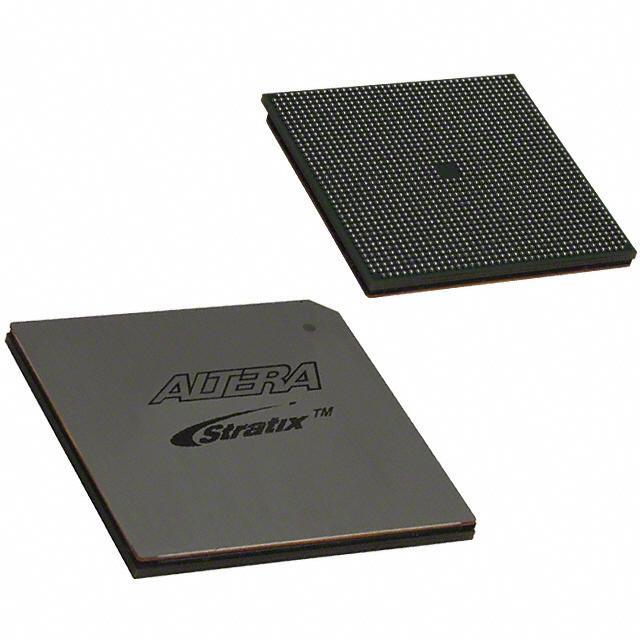

EP2S180F1508C4N Altera
Same model may have multiple batches, images only for reference.

EP2S180F1508C4N

Part No EP2S180F1508C4N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 1170 I/O 1508FBGA / FPGA Stratix® II Family 179400 Cells 711.24MHz 90nm Technology 1.2V 1508-Pin FC-FBGA
Datasheet
EP2S180F1508C4N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix II
Number of LABs/CLBs 8970
Number of Logic Elements/Cells 179400
Total RAM Bits 9383040
Number of I/O 1170
Operating Supply Voltage 1.15 V ~ 1.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 1508-BBGA, FCBGA
Manufacturer Package 1508-FBGA (30x30)
Win Source Part Number 773925-EP2S180F1508C4N
Popularity Medium
Supply and Demand Status Limited
Family Name EP2S180
Introduction Date January 22, 2004
ECCN 3A001.a.7.a
Country of Origin Taiwan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EP2S180F1508C4N CAD Model

Description

The Altera Stratix II series is a programmable logic device that is designed to be used in a wide range of applications.

  • LABs/CLBs: 8970
  • Logic Elements/Cells: 179400
  • Supply Voltage: 1.15 V to 1.25 V
  • I/O: 1170
  • Total RAM: 9383040 bits
  • Gates: 55856
  • Package: 1508-BBGA, FCBGA
  • Mounting: SMD
  • Category: Integrated Circuits (ICs)
  • Popularity: Medium
  • Supply and Demand: Limited
