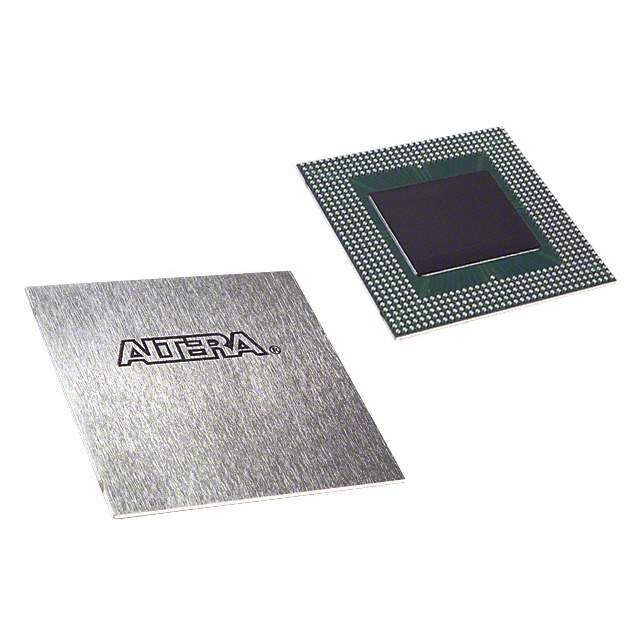

EP20K1000EBC652-3 Real Image
Same model may have multiple batches, images only for reference.

EP20K1000EBC652-3

Part No EP20K1000EBC652-3
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 488 I/O 652BGA / FPGA APEX 20K Family 1M Gates 38400 Cells 299MHz 0.22um Technology 1.8V 652-Pin FCBGA
Datasheet
EP20K1000EBC652-3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series APEX-20KE
Part Status Obsolete(EOL)
Number of LABs/CLBs 3840
Number of Logic Elements/Cells 38400
Total RAM Bits 327680
Number of I/O 488
Number of Gates 1772000
Operating Supply Voltage 1.71 V ~ 1.89 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 652-BBGA
Manufacturer Package 652-BGA (45x45)
Win Source Part Number 773830-EP20K1000EBC652-3
Popularity Medium
Supply and Demand Status Limited
Quantity per package 12
Family Name EP20K1000E
Introduction Date May 17, 2001
ECCN 3A001.a.7.a
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EP20K1000EBC652-3 CAD Model

Description

The Altera APEX-20KE is a high-performance integrated circuit with 488 I/Os, 3840 LABs/CLBs, and 38400 logic elements/cells. It features:

  • Total RAM: 327680 bits
  • Operating Supply Voltage: 1.71 V to 1.89 V
  • Package: 652-BBGA
  • Mounting: SMD
  • Category: Integrated Circuits (ICs)
  • Series: APEX-20KE
  • Status: Limited Supply
  • Package Quantity: 12
