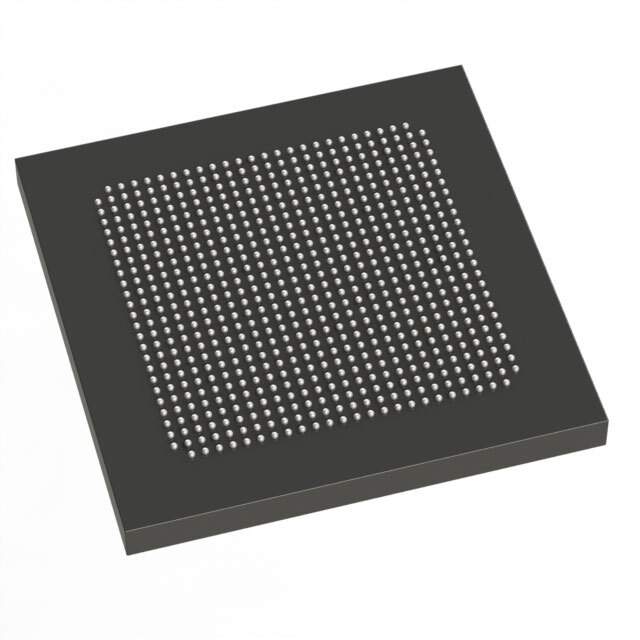

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Mercury
Part Status Obsolete(EOL)
Number of LABs/CLBs 1440
Number of Logic Elements/Cells 14400
Total RAM Bits 114688
Number of I/O 486
Number of Gates 350000
Operating Supply Voltage 1.71 V ~ 1.89 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 780-BBGA, FCBGA
Manufacturer Package 780-FBGA (29x29)
Win Source Part Number 773821-EP1M350F780C7
Popularity Medium
Supply and Demand Status Limited
Family Name EP1M350
ECCN 3A991
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EP1M350F780C7 CAD Model

Description

The Altera Mercury is an FPGA that is designed for a wide range of applications. It features:

  • Logic Elements/Cells: 14400
  • LABs/CLBs: 1440
  • I/Os: 486
  • Operating Supply Voltage: 1.71 V ~ 1.89 V
  • Operating Temperature: 0°C to 85°C
  • Package Type: 780-BBGA, FCBGA
  • Mounting: SMD
  • Total RAM Bits: 114688
  • Family: EP1M350
  • Category: Integrated Circuits (ICs)
  • Manufacturer Package: 780-FBGA (29x29)
  • Status: Obsolete, Limited Supply
