Same model may have multiple batches, images only for reference.

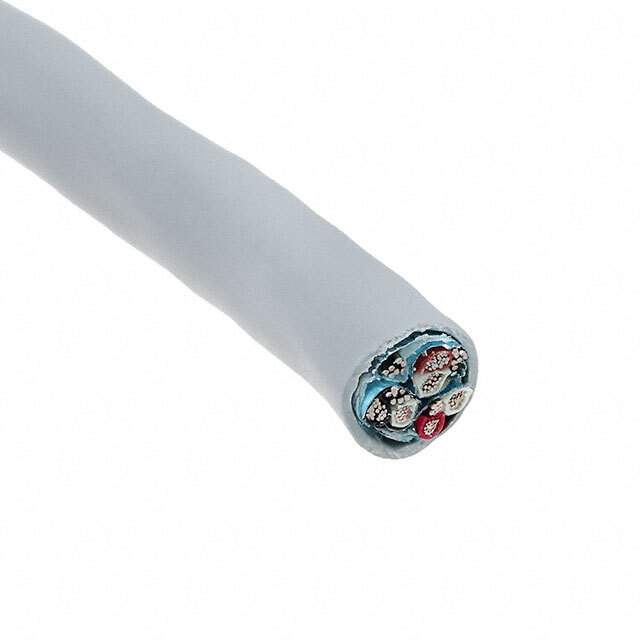

78163 SL005 Real Image
Same model may have multiple batches, images only for reference.

78163 SL005

Part No 78163 SL005
Manufacturer Alpha Wire
Catalog Multiple Conductor Cables
Description MULTI-PAIR 6COND 26AWG SHLD 100'
Datasheet
78163 SL005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cables, Wires
Manufacturer Alpha Wire
Series EcoCable Mini
Cable Type Multi-Pair
Number of Conductors 6 (3 Pair Twisted)
Wire Gauge 26 AWG
Conductor Strand 19/38
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyphenylene Ether, Modified (mPPE)
Jacket (Insulation) Diameter 0.158" (4.01mm)
Shield Type Foil
Length 100.0' (30.5m)
Jacket Color Slate
Ratings ISO 10993, UL Style 21460
Features Biological Compatibility, Drain Wire, Rip Cord
Voltage 300V
Operating Temperature Range -40°C ~ 80°C
Jacket (Insulation) Thickness 0.015" (0.38mm)
Conductor Insulation Polyphenylene Ether, Modified (mPPE)
Shield Material Aluminum
Shield Coverage 100%
Win Source Part Number 766282-78163 SL005
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 78163 SL005 CAD Model

Description

The Alpha Wire 766282-78163 SL005 is a multi-pair cable.

  • Wire Gauge: 26 AWG
  • Temperature Range: -40°C ~ 80°C
  • Ratings: ISO 10993, UL Style 21460
  • Conductor Material: Copper, Tinned
  • Jacket (Insulation) Material: Polyphenylene Ether, Modified (mPPE)
  • Jacket Thickness: 0.015" (0.38mm)
