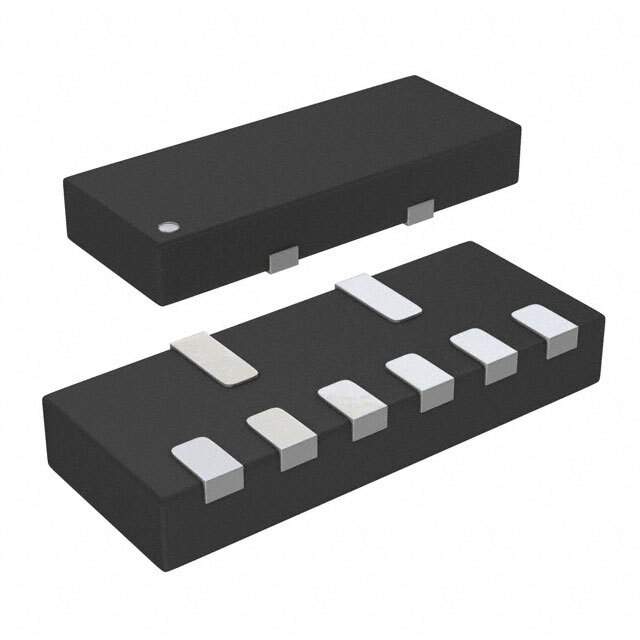

Same model may have multiple batches, images only for reference.

AOZ8807DI-05

Name: AOZ8807DI-05
Brand: Alpha & Omega Semiconductor Inc.
SKU: 768586
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AOZ8807DI-05
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 9VC / ESD Suppressor Diode Array Uni-Dir 5V
Datasheet	AOZ8807DI-05 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel package
Type	Steering (Rail to Rail)
Unidirectional Channels	6
Voltage - Reverse Standoff (Typ)	5V (Maximum)
Minimum Breakdown Voltage	6V
Maximum Clamping Voltage	9V
Current - Peak Pulse (10/1000μs)	4A (8/20μs)
Power Line Protection	Yes
Applications	Ethernet, HDMI
Capacitance @ Frequency	0.45pF @ 1MHz
Operating Temperature Range	-40°C ~ 125°C (TJ)
Mounting	SMD
Package	8-UFDFN
Manufacturer Package	8-DFN (3.3x1.3)
Win Source Part Number	768586-AOZ8807DI-05
Popularity	Medium
Supply and Demand Status	Balance
Family Name	AOZ8807DI-05
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian AOZ8807DI-05 CAD Model

Alternative Products

Description

The AOZ8807DI-05 is a steering type power line protection IC manufactured by Alpha & Omega Semiconductor Inc.

Channels: 6 unidirectional
Voltage Reverse Standoff: 5V (maximum)
Peak Pulse Current: 4A (8/20μs)
Capacitance: 0.45pF @ 1MHz
Clamping Voltage MAX: 9V
Breakdown Voltage MIN: 6V
Applications: Ethernet, HDMI
Operating Temperature: -40°C to 125°C
Package: Reel
Popularity: Medium
