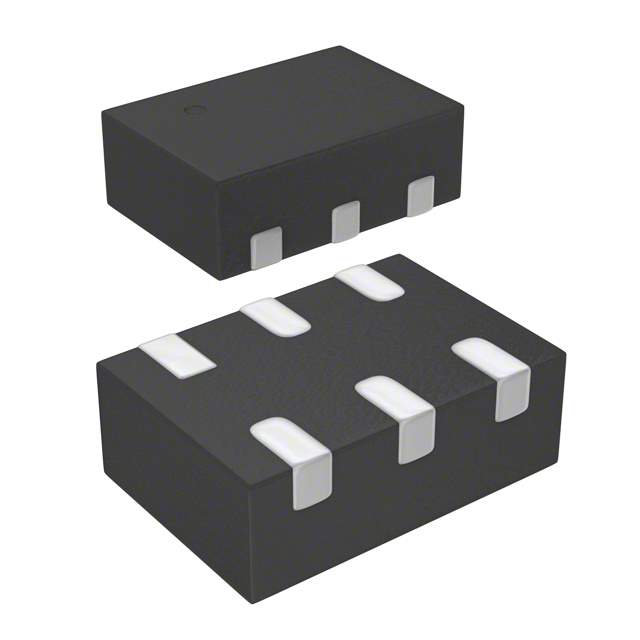

AOZ8235DI-05 Real Image
Same model may have multiple batches, images only for reference.

AOZ8235DI-05

Part No AOZ8235DI-05
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC
Datasheet
AOZ8235DI-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 5
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 4A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 13.5pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DFN (1.45x1.0)
Win Source Part Number 1017423-AOZ8235DI-05
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AOZ8235DI-05 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOZ8235DI-05 is a Zener type circuit protection device that has 5 unidirectional channels and 4 bidirectional channels.

  • Mounting: Reel - TR
  • STAND-OFF Voltage: 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Max Clamping Voltage: 15V
  • Peak Pulse Current(Ippm): 4A (8/20μs)
  • Capacitance: 13.5pF @ 1MHz
  • Supply and Demand: Currently in balance
