Same model may have multiple batches, images only for reference.

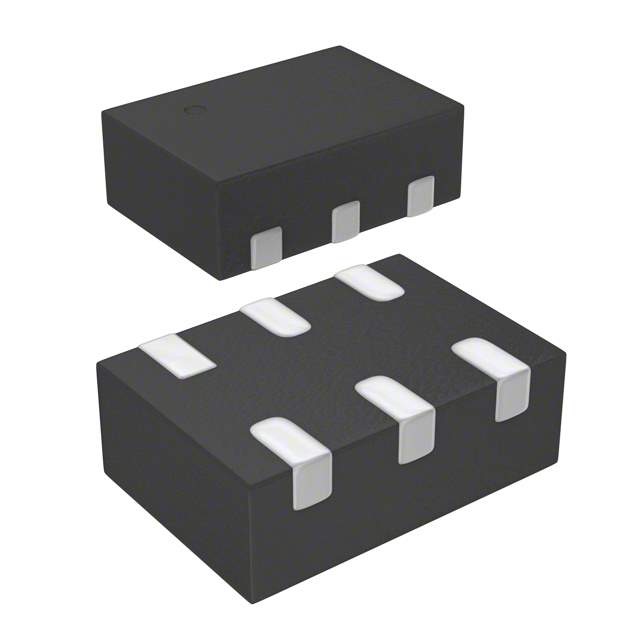

AOZ8234DI-05 Real Image
Same model may have multiple batches, images only for reference.

AOZ8234DI-05

Part No AOZ8234DI-05
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC 6DFN
Datasheet
AOZ8234DI-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 15V Clamp 25A Ipp Tvs Diode Surface Mount 6-DFN (1.45x1.0)
Manufacturer Alpha & Omega Semiconductor Inc.
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-UFDFN
Case / Package 6-DFN (1.45x1.0)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 861246-AOZ8234DI-05
Ultra Librarian 3D Model Ultra Librarian AOZ8234DI-05 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AOZ8234DI-05 is a surface mount TVS diode designed to provide 15V clamp and 25A Ipp.

  • Mounting: Surface Mount
  • Package: 6-DFN (1.45x1.0)
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Applications: Circuit Protection
  • Popularity: Medium
  • RoHS: Compliant
  • ECCN: EAR99
  • Packaging: Reel
  • Quantity per Package: 3000
  • Clamp Voltage: 15V
  • Peak Pulse Current: 25A Ipp
