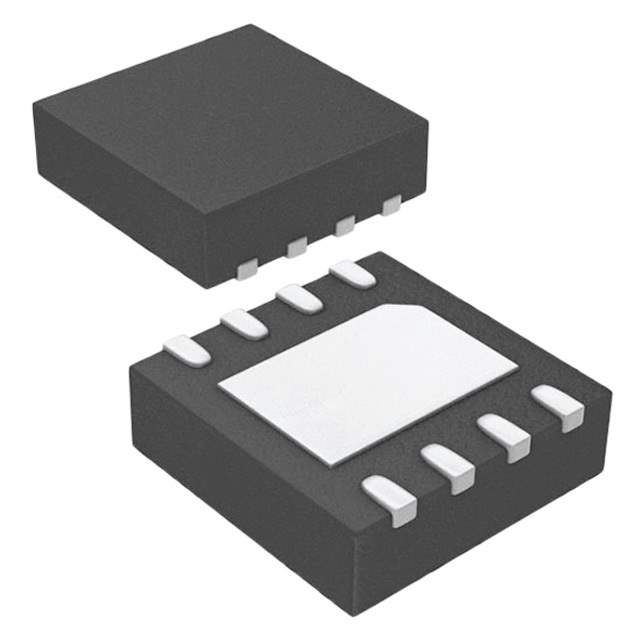

Same model may have multiple batches, images only for reference.

AOZ8013DI

Name: AOZ8013DI
Brand: Alpha & Omega Semiconductor Inc.
SKU: 768584
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AOZ8013DI
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	EMI/RFI Filters (LC, RC Networks)
Description	FILTER RC(PI) 100 OHM/28PF SMD / EMI Filter RC-Circuit 35dB Flat Style SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Filters
Manufacturer	Alpha & Omega Semiconductor Inc.
Packaging	Reel package
Type	Low Pass
Filter Order	2nd
Technology	RC (Pi)
Number of Channels	4
Center / Cutoff Frequency	90MHz (Cutoff)
Attenuation Value	-35dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms)	100
Current	20mA
Values	R = 100 Ohms, C = 28pF
ESD Protection	Yes
Operating Temperature Range	-40°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage Rating DC	5V
Mounting	SMD
Package	8-WFDFN Exposed Pad
Dimension	0.079" L x 0.079" W (2.00mm x 2.00mm)
Height	0.031" (0.79mm)
Win Source Part Number	768584-AOZ8013DI
Popularity	Medium
Supply and Demand Status	Balance
Family Name	AOZ8013
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	Obsolete / End of life
Ultra Librarian 3D Model	Ultra Librarian AOZ8013DI CAD Model

Alternative Products

Description

The AOZ8013DI is a low pass filter manufactured by Alpha & Omega Semiconductor Inc.

Package: Reel
Mounting: SMD
Application: Data lines for mobile devices
Technology: RC (Pi)
Height: 0.031" (0.79mm)
Current: 20mA
Channels: 4
Attenuation: -35dB @ 800MHz ~ 2.2GHz
Filter Order: 2nd
Center/Cutoff Frequency: 90MHz (Cutoff)
Resistance: 100 Ohms
Values: R = 100 Ohms, C = 28pF
ESD Protection: Yes
Family Name: AOZ8013
