Same model may have multiple batches, images only for reference.

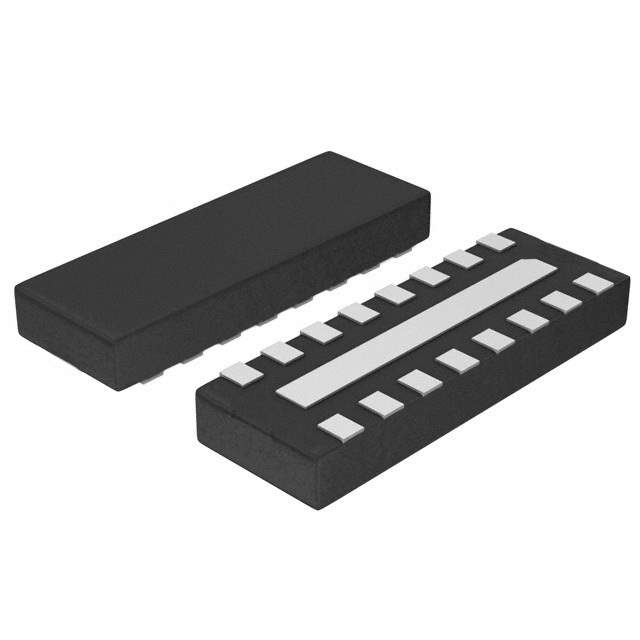

AOZ8010DTL Real Image
Same model may have multiple batches, images only for reference.

AOZ8010DTL

Part No AOZ8010DTL
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/28PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Center / Cutoff Frequency 90MHz (Cutoff)
Attenuation Value -35dB @ 800MHz to 2.2GHz
Resistance - Channel (Ohms) 100
Current 20mA
Values R = 100 Ohms, C = 28pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 5V
Mounting SMD (SMT)
Dimension 0.157" L x 0.063" W (4.00mm x 1.60mm)
Height 0.024" (0.60mm)
Win Source Part Number 199135-AOZ8010DTL
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AOZ8010DTL CAD Model

Description

AOZ8010DTL

The AOZ8010DTL is a high-performance electronic component known for its efficiency and reliability. It is perfect for incorporation into a variety of modern electronics, balancing performance with cost-effectiveness.

  • Applications/Projects:
    • Portable electronic devices
    • Embedded systems
    • Networking devices
    • Medical equipment
    • Consumer electronics
  • Features and Benefits:
    • Superior thermal performance
    • Easy integration into existing systems
    • Enhanced load regulation capabilities
    • Compact design for flexible applications
  • Additional Details:
    • Operating voltage range: 1.8V to 3.6V
    • RoHS compliant
    • Comprehensive protection against electrical faults
