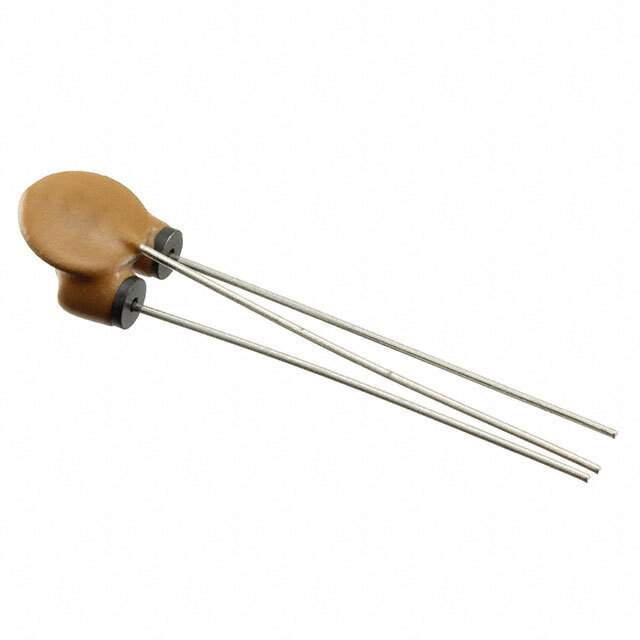

VFS9VD31B223Q55B Real Image
Same model may have multiple batches, images only for reference.

VFS9VD31B223Q55B

Part No VFS9VD31B223Q55B
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(T) 0.022UF TH
Datasheet
VFS9VD31B223Q55B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Features LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel C = 0.022µF 7 A 3-SIP
Manufacturer Murata Electronics North America
Series EMIFIL®, EMIGUARD®, VFS9
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 100°C
Mounting Through Hole
Package 3-SIP
Family Name VFS9VD31
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 490-11913, VFS9VD31B223Q55B-ND
Quantity per package 200
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844546-VFS9VD31B223Q55B
Ultra Librarian 3D Model Ultra Librarian VFS9VD31B223Q55B CAD Model

Description

The Murata Electronics North America VFS9VD31B223Q55B is an LC (T-Type) EMI filter designed for use in electronic circuits. The VFS9VD31B223Q55B has a 3rd order low pass filter and 1 channel C = 0.022µF and can handle up to 7A.

  • Type: LC (T-Type) EMI Filter
  • Filter Order: 3rd Order Low Pass
  • Channels: 1
  • Capacitance: C = 0.022µF
  • Current Rating: 7A
  • Series: EMIFIL®, EMIGUARD®, VFS9
  • Temperature Range: -40°C to 100°C
  • Package: Bulk 3-SIP
  • Mounting Type: Through Hole
  • Part Status: Obsolete
  • Supply and Demand Status: Limited
