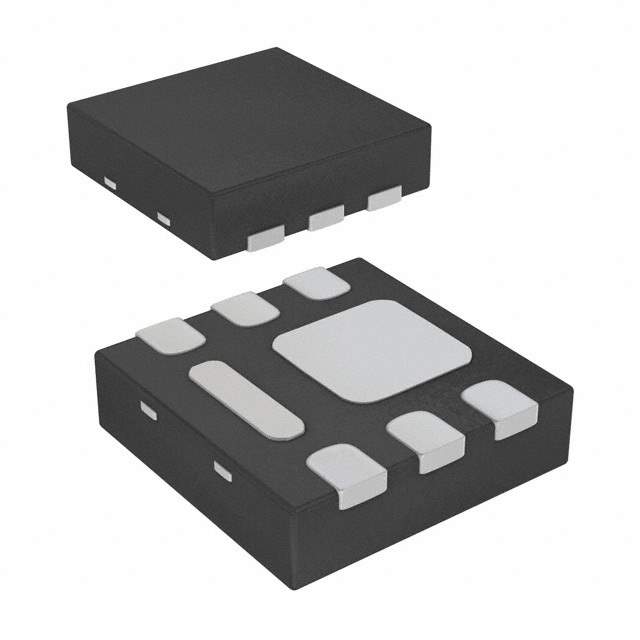

AON2290 Real Image
Same model may have multiple batches, images only for reference.

AON2290

Part No AON2290
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description 100V N-Channel MOSFET
Datasheet
AON2290 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Channel Type Type N
Technology MOSFET
Drain Source Voltage 100V
Current - Continuous Drain (Id) @ 25°C 4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 2.8V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 12nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 415pF @ 50V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.8W (Ta)
Rds On (Maximum) @ Id, Vgs 72 mOhm @ 4.5A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 6-DFN-EP (2x2)
Package 6-UDFN Exposed Pad
Win Source Part Number 1144966-AON2290
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Limited
Family Name AON2290
Introduction Date November 05, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian AON2290 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON2290 is a MOSFET technology-based product that is designed for discrete semiconductor applications.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package: 6-UDFN exposed pad
  • Temperature Range: -55°C to 150°C
