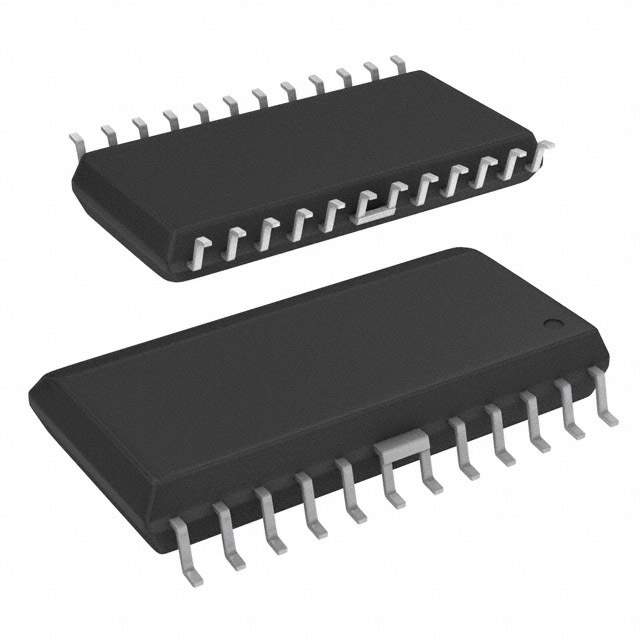

UDQ2916LBTR-T Real Image
Same model may have multiple batches, images only for reference.

UDQ2916LBTR-T

Part No UDQ2916LBTR-T
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24SOIC
Datasheet
UDQ2916LBTR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Reel - TR
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications General Purpose
Output Current 750mA
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 45 V
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 24-SOIC
Win Source Part Number 125565-UDQ2916LBTR-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian UDQ2916LBTR-T CAD Model

Description

The Allegro MicroSystems fully integrated driver IC is designed for use in control and power stage applications.

  • Package: 24-SOIC case
  • Operating Temperature: -40°C to 150°C (TJ)
  • Supply Voltage: 4.75V to 5.25V
  • Output Current: 750mA
  • Voltage Load: 10V to 45V
  • Usage: Widely used in integrated circuits
  • Popularity: Medium
