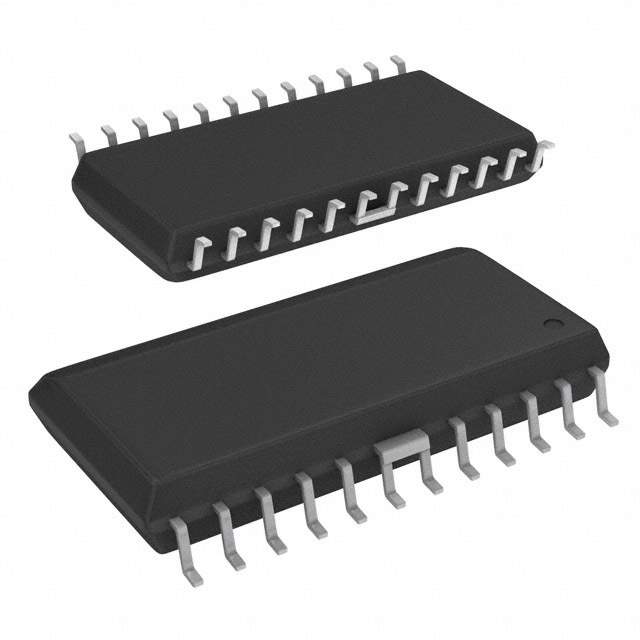

UDN2916LB-T Real Image
Same model may have multiple batches, images only for reference.

UDN2916LB-T

Part No UDN2916LB-T
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER PAR 24SOIC
Datasheet
UDN2916LB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tube/Rail
Status Obsolete(EOL)
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Purpose Driver - Fully Integrated, Control and Power Stage
Technology Bipolar
Applications General Purpose
Output Current 750mA
Supply Voltage - Operating 4.75 V to 5.25 V
Voltage - Load 10 V to 45 V
Temperature Range - Operating -20°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 24-SOIC
Win Source Part Number 1116241-UDN2916LB-T
Popularity Medium
Supply and Demand Status Balance
Quantity per package 31
Ultra Librarian 3D Model Ultra Librarian UDN2916LB-T CAD Model

Description

The UDN2916LB-T is a bipolar motor driver designed for use in a variety of applications, including automotive and industrial systems.

  • Step Resolutions: Full-step to 1/16-step
  • Supply Voltage: 4.75V to 5.25V
  • Output Current: Up to 750mA per phase
  • Motor Type: Bipolar Stepper Motor
  • Features: Current limit circuit and thermal shutdown circuit
  • Package: 24-pin SOIC
