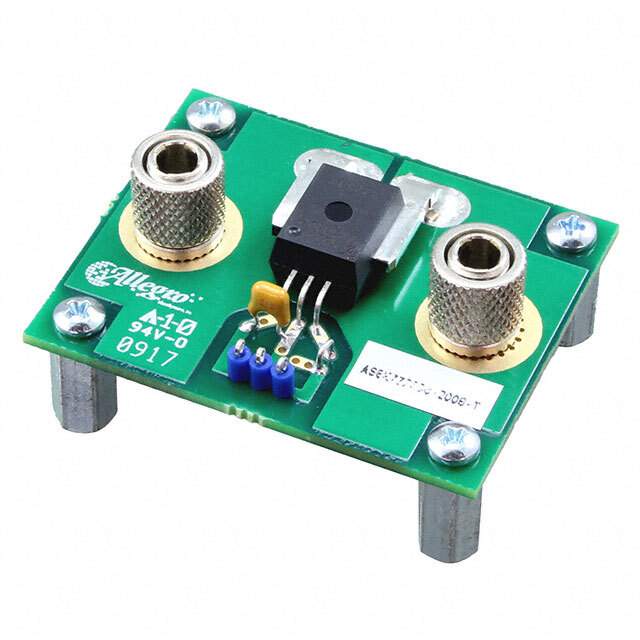

ASEK772ECB-200B-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK772ECB-200B-T-DK

Part No ASEK772ECB-200B-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description EVAL BOARD FOR ACS772 / ACS772 - Current Sensor Sensor Evaluation Board
Datasheet
ASEK772ECB-200B-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Bulk
Sensor Type Current Sensor
Sensing Range 200A
Interface Analog
Sensitivity 10mV/A
Voltage - Supply 4.5V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part ACS772
Base Product Number ASEK772
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1347428-ASEK772ECB-200B-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK772ECB-200B-T-DK CAD Model

Description

The 1347428-ASEK772ECB-200B-T-DK is a current sensor evaluation board that can measure up to 200A.

  • Package: Bulk
  • Standard Package: 1 board
  • Interface: Analog
  • Sensitivity: 10mV/A
  • Utilized IC/Part: ACS772
  • Sensor Type: Current sensor
  • Voltage Supply: 4.5V to 5.5V
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • RoHS: Not applicable
