Same model may have multiple batches, images only for reference.

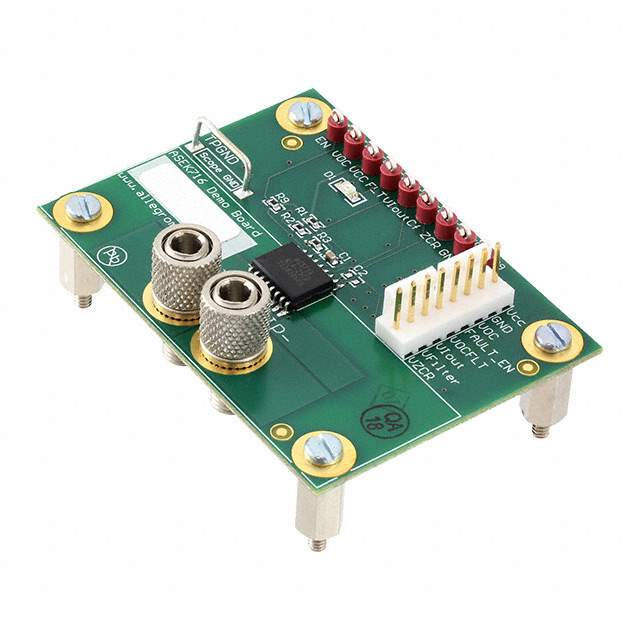

ASEK716KLA-25CB-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK716KLA-25CB-T-DK

Part No ASEK716KLA-25CB-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description BOARD DEMO 716KLA-25CB SENSOR / ACS716 - Current Sensor Sensor Evaluation Board
Datasheet
ASEK716KLA-25CB-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Box
Sensor Type Current Sensor
Sensing Range 25A
Sensitivity 18.6mV/A
Voltage - Supply 3V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part ACS716
Base Product Number ASEK71
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1347206-ASEK716KLA-25CB-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK716KLA-25CB-T-DK CAD Model

Description

The ASEK716KLA-25CB-T-DK is an evaluation board for the ACS716 current sensor.

  • Packaging: box
  • Sensitivity: 18.6mV/A
  • Sensing Range: 25A
  • Sensor Type: current sensor
  • Voltage Supply Range: 3V to 3.6V
  • Applications: current sensing
