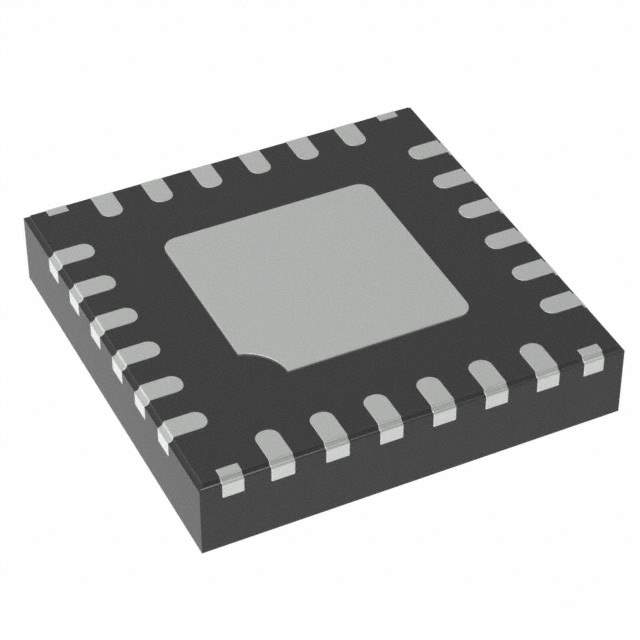

A80602KESJSR Real Image
Same model may have multiple batches, images only for reference.

A80602KESJSR

Part No A80602KESJSR
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - LED Drivers
Description IC LED DRVR CTRL PWM 140MA 24QFN / LED Driver IC 6 Output DC DC Controller SEPIC, Step-Up (Boost) Analog, PWM Dimming 140mA 24-QFN (4x4)
Datasheet
A80602KESJSR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr Allegro MicroSystems
Series Automotive, AEC-Q100
Package Tape & Reel
Type DC DC Controller
Topology SEPIC, Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 6
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 40V
Voltage - Output 4.05V ~ 4.45V
Current - Output / Channel 140mA
Frequency 200kHz ~ 2.15MHz
Dimming Analog, PWM
Applications Automotive, Backlight
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount, Wettable Flank
Package / Case 24-WFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Base Product Number A80602
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 620-2040-2,620-2040-6,620-2040-1
Standard Package 6,000
Win Source Part Number 1001736-A80602KESJSR
Ultra Librarian 3D Model Ultra Librarian A80602KESJSR CAD Model

Description

The A80602KESJSR is an integrated circuit manufactured by Allegro MicroSystems.

  • Application: LED drivers
  • Series: automotive
  • Certification: AEC-Q100
  • Package: tape and reel
  • Standard Package: 6,000
  • Type: DC DC controller
  • Topology: SEPIC and step-up (boost)
  • Outputs: six
  • Voltage Output Range: 4.05V to 4.45V
  • Dimming Options: analog and PWM
  • Output Current: 140mA per channel
  • Description: The A80602KESJSR is a reliable and efficient product that is recommended for use in electronic devices that require a LED driver.
