The A3987SLPTR-T from Allegro MicroSystems, LLC is a complete microstepping motor driver with built-in translator for easy implementation. It is capable of driving a single stepper motor with up to 1.5A continuous current per phase. The A3987SLPTR-T can be operated in full-, half-, quarter-, or eighth-step modes, with up to 16 microsteps per full step. It features a wide operating voltage range of 3V to 5.5V, making it ideal for battery-powered applications.

The A3987SLPTR-T is a highly integrated microstepping driver that includes all of the necessary features for driving a stepper motor, including:

• A built-in translator that converts step and direction signals into motor drive signals
• A current regulator that provides precise and consistent current to the motor windings
• A microstepping controller that allows for smooth and accurate motor positioning
• A protection circuit that guards against overcurrent, overvoltage, and thermal overload

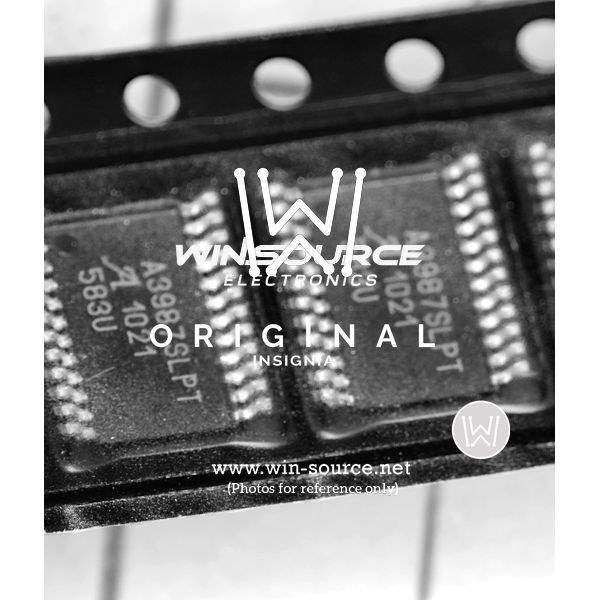

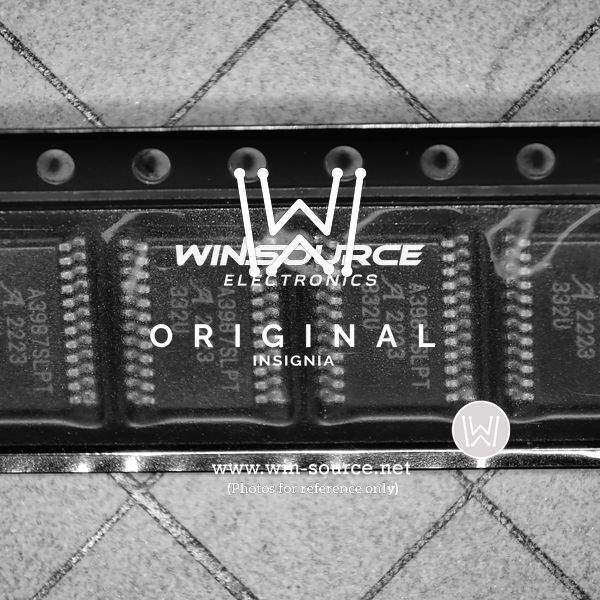

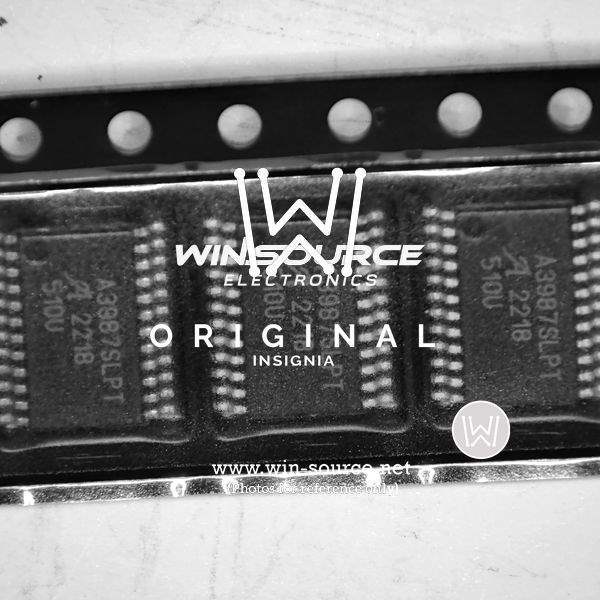

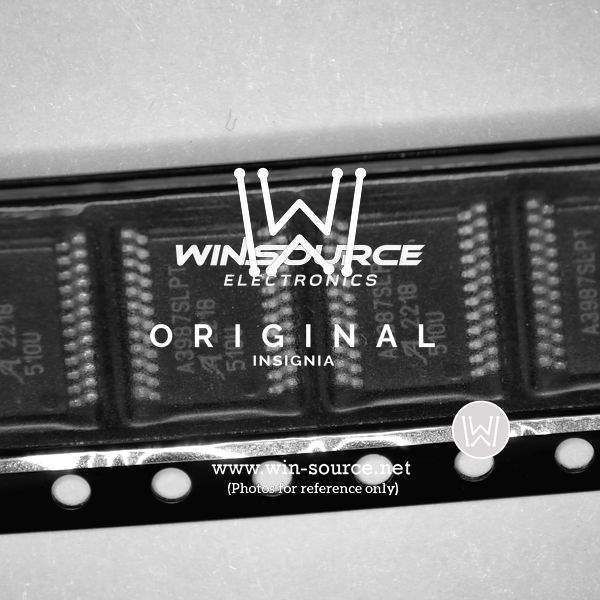

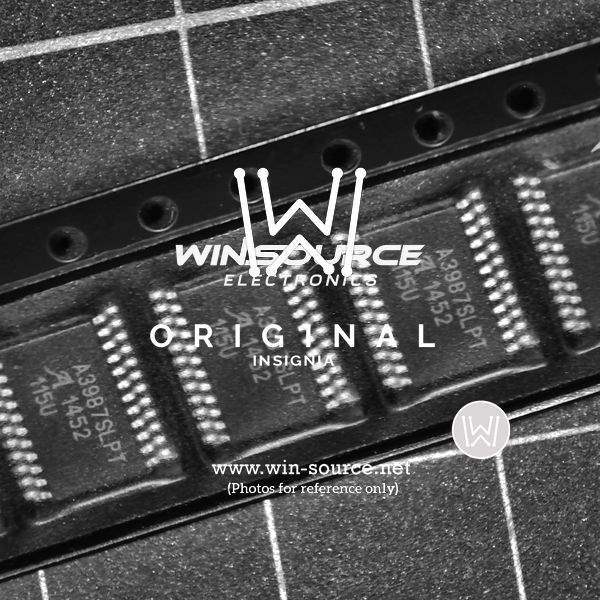

The A3987SLPTR-T is easy to use and requires only a few external components to operate. It is packaged in a compact TSSOP-24 package, making it ideal for space-constrained applications.

Features:

• Complete microstepping motor driver with built-in translator
• Drives a single stepper motor with up to 1.5A continuous current per phase
• Operates in full-, half-, quarter-, or eighth-step modes, with up to 16 microsteps per full step
• Wide operating voltage range of 3V to 5.5V
• Protection against overcurrent, overvoltage, and thermal overload
• Compact TSSOP-24 package

Applications:

• Battery-powered devices, such as portable electronics and robotic toys
• Industrial automation equipment, such as CNC machines and 3D printers
• Medical devices, such as insulin pumps and X-ray machines
• Security and surveillance systems
• Office automation equipment, such as printers and scanners

Benefits:

• Easy to use and requires only a few external components to operate
• Compact and lightweight package
• Wide operating voltage range
• Integrated protection features
• High performance and reliability

How to Use:

The A3987SLPTR-T is easy to use and requires only a few external components to operate. The following is a basic usage example:

1. Connect the motor windings to the A1, A2, B1, and B2 pins.
2. Connect the step and direction signals to the STEP and DIR pins.
3. Connect a power supply to the VDD and GND pins.
4. Apply a logic high signal to the RESET pin to reset the device.

Once the device is reset, it is ready to drive the motor. To move the motor, simply apply a pulse to the STEP pin and the motor will move one microstep in the direction specified by the DIR pin.

Conclusion:

The A3987SLPTR-T is a complete microstepping motor driver with built-in translator that is easy to use and highly reliable. It is ideal for a wide range of applications, including battery-powered devices, industrial automation equipment, medical devices, and security and surveillance systems.
