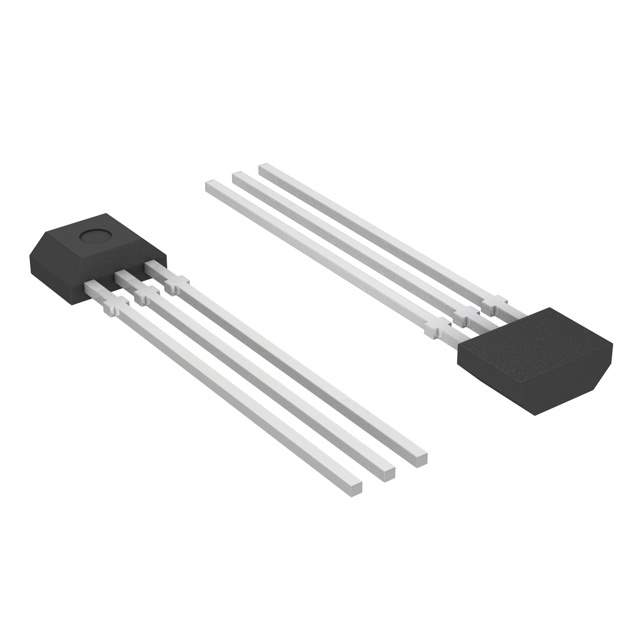

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Manufacturer Allegro MicroSystems
Packaging Bulk
Product Status Obsolete
Function Latch
Technology Hall Effect
Polarization South Pole
Sensing Range 15mT Trip, -15mT Release
Test Condition -40°C ~ 150°C
Voltage - Supply 3.6V ~ 24V
Current - Supply (Max) 3.5mA
Current - Output (Max) 60mA
Output Type Open Drain
Temperature Range - Operating -40°C ~ 150°C
Mounting Through Hole
Supplier Device Package 3-SIP
Case / Package 3-SSIP
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 500
Win Source Part Number 1336507-A3282LUA
Ultra Librarian 3D Model Ultra Librarian A3282LUA CAD Model

Description

The Allegro MicroSystems A3282LUA is a solid-state magnetic sensor switch that utilizes Hall effect technology.

  • Function: latching
  • Output Type: open-drain
  • Sensing Range: 15mT trip and -15mT release
  • Maximum Output Current: 60mA
  • Operating Temperature: -40°C to 150°C
  • Current Supply: 3.5mA
  • Package: 3-SIP
  • Mounting Type: through hole
