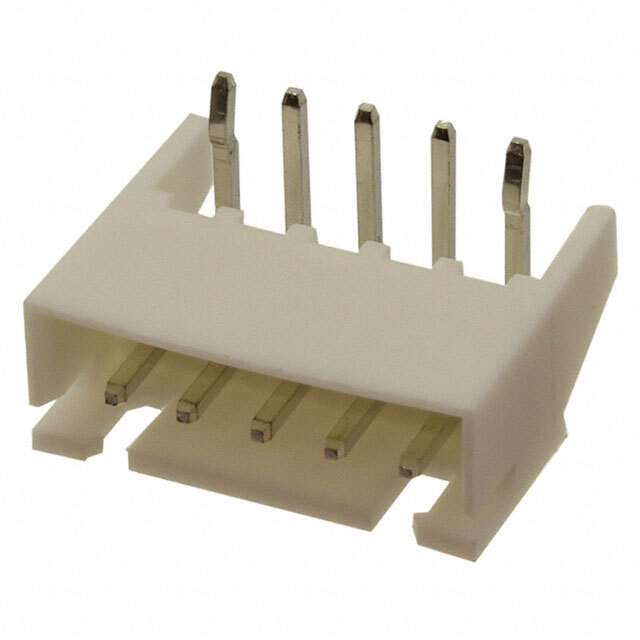

25SH-B-05-TR

Name: 25SH-B-05-TR
Brand: Adam Technologies, Inc.
SKU: 1345650
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	25SH-B-05-TR
Manufacturer	Adam Technologies, Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 5POS 2.5MM / Connector Header Through Hole, Right Angle 5 position 0.098" (2.50mm)
Datasheet	25SH-B-05-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Adam Tech
Series	25SH
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Friction Lock
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.228" (5.80mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66) , Nylon 6/6
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	3A (AC/DC)
Voltage Rating	250VAC
Base Product Number	25SH-B
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1345650-25SH-B-05-TR
Ultra Librarian 3D Model	Ultra Librarian 25SH-B-05-TR CAD Model

Alternative Products

Description

The 25SH-B-05-TR is a 5-position male pin header connector manufactured by Adam Tech.

Series: 25SH
Application: Board to cable/wire
Pitch: 0.098 inches (2.50mm)
Voltage Rating: 250VAC
Contact Material: Brass
Termination: Kinked pin, solder
Shrouded: 4 Walls
Fastening Type: Friction lock
Insulation Material: Polyamide (PA66) and nylon 6/6
Insulation Color: White
Contact Shape: Square
Contact Length: 0.134 inches (3.40mm)
Temperature Range: -25°C to 85°C
Current Rating: 3A (AC/DC)
Supplied: Bulk
Standard Package: 1,000
