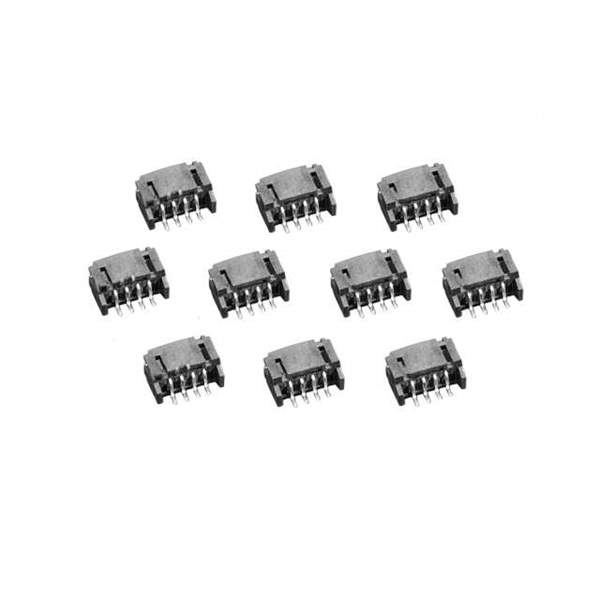

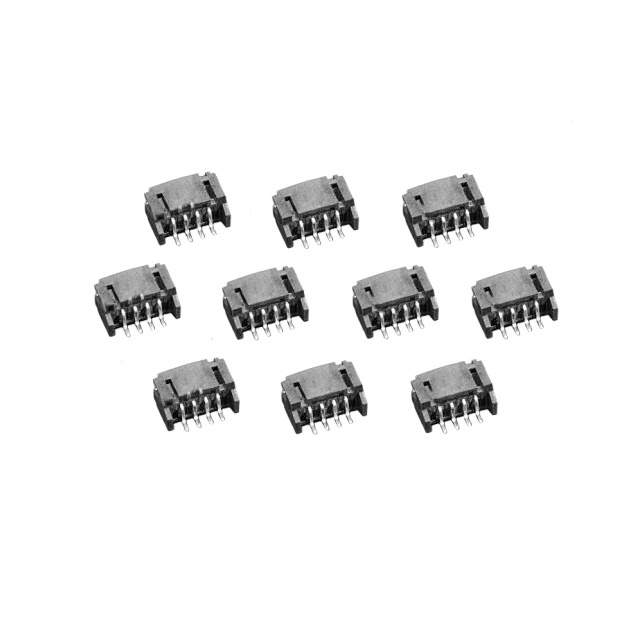

Same model may have multiple batches, images only for reference.

4392

Name: 4392
Brand: Adafruit Industries LLC
SKU: 856058
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	4392
Manufacturer	Adafruit Industries LLC
Catalog	Rectangular Connectors
Description	JST PH 4-PIN CONN 10-PACK STEMMA / Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
Datasheet	4392 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Adafruit Industries LLC
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.217" (5.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A (AC/DC)
Voltage Rating	100VAC/DC
Standard Package	1 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856058-4392
Ultra Librarian 3D Model	Ultra Librarian 4392 CAD Model

Description

The 856058-4392 is a male pin header connector used in electronic devices.

Positions: 4
Features: Solder Retention
Material: Brass
Voltage Rating: 100VAC/DC
Mounting: Surface Mount, Right Angle
Contact Finish: Tin
Insulation Material: Polyamide (PA6T)
Insulation Color: Black
Application: Board to Cable/Wire
Manufacturer: Adafruit Industries LLC
