Same model may have multiple batches, images only for reference.

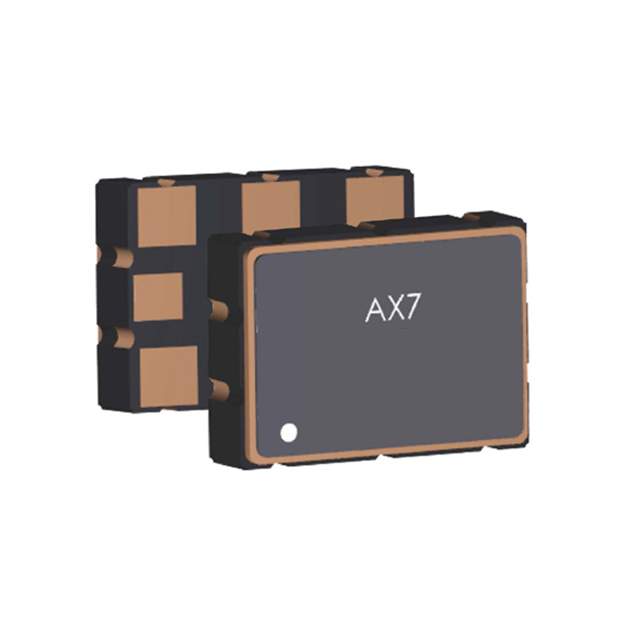

AX7PBF1-810.0000T Real Image
Same model may have multiple batches, images only for reference.

AX7PBF1-810.0000T

Part No AX7PBF1-810.0000T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 810.0000MHZ LVPECL / 810 MHz XO (Standard) LVPECL Oscillator 2.5V Enable/Disable 8-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ClearClock™ AX7
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 810 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 94mA
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 86mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250
Win Source Part Number 992103-AX7PBF1-810.0000T
Ultra Librarian 3D Model Ultra Librarian AX7PBF1-810.0000T CAD Model

Description

The ClearClock™ AX7 XO oscillator is a high-performance device designed for use in electronic applications that require a frequency of 810 MHz and is manufactured by Abracon LLC

  • Type: standard XO type oscillator
  • Package: Tape & Reel (TR)
  • Mounting: SMD (SMT)
  • Height: 0.075 inches
  • Dimension: 0.276 inches L x 0.197 inches W
  • Frequency Stability: ±25ppm
  • Output: LVPECL
  • Current Supply: 94mA
  • Disable Current Supply: 86mA
  • Voltage Supply: 2.5V
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99 compliant
  • Base Resonator: crystal
  • Absolute Pull Range (APR): -
  • REACH: unaffected
  • HTSUS: 8542.39.0001
