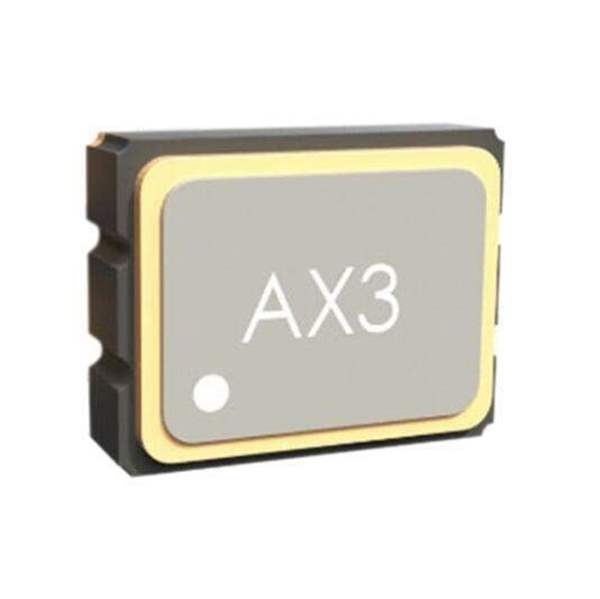

AX3DAF1-156.2500 Abracon LLC
Same model may have multiple batches, images only for reference.

AX3DAF1-156.2500

Part No AX3DAF1-156.2500
Manufacturer Abracon LLC
Catalog Oscillators
Description 156.25 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Category Crystals, Oscillators, Resonators Oscillators
Packaging  Strip
Part Status Active
Frequency 156.25 MHz
Function Enable/Disable
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Operating Temperature -40°C ~ 85°C
Win Source Part Number WS1211562-AX3DAF1-156.2500
Ultra Librarian 3D Model Ultra Librarian AX3DAF1-156.2500 CAD Model

Description

• Exceptionally Low RMS Jitter: < 80fs Typ (150fs Max @ 156.25MHz)
• Available in industry standard frequencies between
• 100MHz and 212.5MHz
• Lowest power consumption in its class(16mA Typ LVDS @ 156.25MHz)
• ±25ppm stability over industrial operating temperature (-40 to +85ºC)
• 3.3V, 2.5V, 1.8V supply voltage options
• LVPECL, LVDS, HCSL differential outputs
• Industry standard 3.2 x 2.5 x 1.0 mm footprint
• Available in Abracon’s Global Distribution Network
