Same model may have multiple batches, images only for reference.

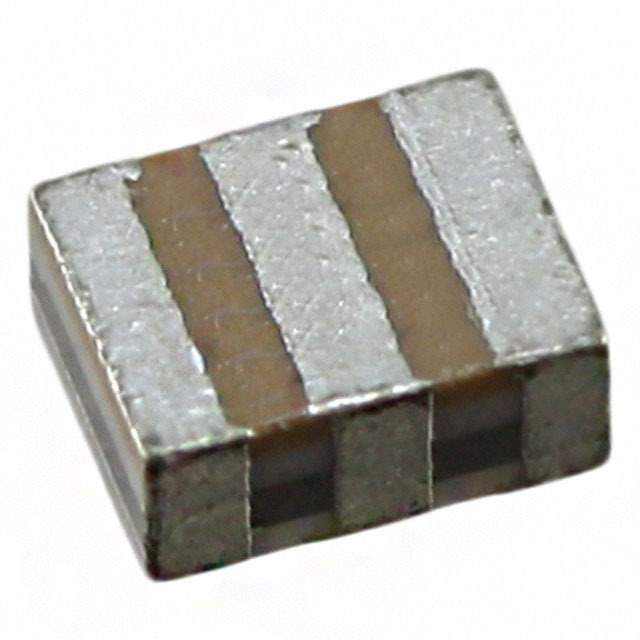

AWSCR-20.00CW-T Real Image
Same model may have multiple batches, images only for reference.

AWSCR-20.00CW-T

Part No AWSCR-20.00CW-T
Manufacturer Abracon LLC
Catalog Resonators
Description CERAMIC RES 20.0000MHZ 10PF SMD / 20 MHz Ceramic Resonator Built in Capacitor 10 pF ±0.2% 60 Ohms -25°C ~ 85°C Surface Mount
Datasheet
AWSCR-20.00CW-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Resonators
Mfr Abracon LLC
Series AWSCR-CW
Package Tape & Reel
Type Ceramic
Frequency 20 MHz
Frequency Stability ±0.2%
Frequency Tolerance ±0.5%
Features Built in Capacitor
Capacitance 10 pF
Impedance 60 Ohms
Temperature Range - Operating -25°C ~ 85°C
Mounting SMD (SMT)
Package / Case 3-SMD, Non-Standard
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height 0.047" (1.19mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 535-10036-1,535-10036-2,535-10036-6,AWSCR20.000CWT,AWSCR-20.000CW-T,AWSCR2000CWT
Standard Package 3,000
Win Source Part Number 1141792-AWSCR-20.00CW-T
Ultra Librarian 3D Model Ultra Librarian AWSCR-20.00CW-T CAD Model

Description

The AWSCR-20.00CW-T is a ceramic resonator with a built-in capacitor.

  • Capacitance: 10 pF
  • Impedance: 60 Ohms
  • Frequency: 20 MHz
  • Frequency Stability: ±0.2%
  • Frequency Tolerance: ±0.5%
  • Packaging: Tape and Reel
  • Mounting: SMD (SMT)
  • Temperature Range: -25°C ~ 85°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
