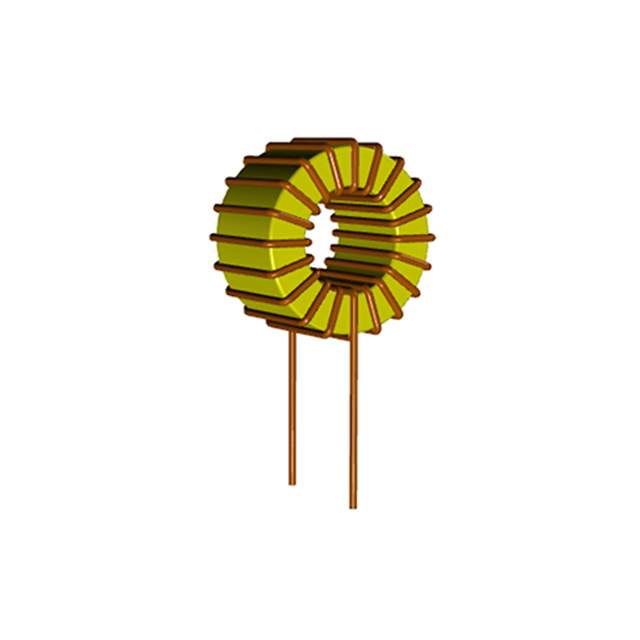

ATCA-01-101M-V Real Image
Same model may have multiple batches, images only for reference.

ATCA-01-101M-V

Part No ATCA-01-101M-V
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 100UH 2A 81 MOHM TH / 100 µH Unshielded Toroidal Inductor 2 A 81mOhm Max Radial, Vertical (Open)
Datasheet
ATCA-01-101M-V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Abracon LLC
Packaging Tray
Type Toroidal
Material - Core Iron Powder
Inductance 100 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Shielding Unshielded
DC Resistance (DCR) 81mOhm Max
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Radial, Vertical (Open)
Size / Dimension 0.709" L x 0.453" W (18.00mm x 11.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 535-13504
Standard Package 150
Win Source Part Number 1327432-ATCA-01-101M-V
Ultra Librarian 3D Model Ultra Librarian ATCA-01-101M-V CAD Model

Description

The Abracon LLC 1327432-ATCA-01-101M-V is a toroidal inductor with unshielded shielding.

  • Size: 0.709" L x 0.453" W (18.00mm x 11.50mm)
  • Inductance: 100 µH
  • Standard Package: 150
  • Mounting: Through a Hole
  • Tolerance: ±20%
  • Material: Iron Powder
  • DC Resistance (DCR): 81mOhm Max
  • Operating Temperature Range: -40°C ~ 105°C
  • Case/Package: Radial and Vertical (Open)
  • Current Rating: 2 A
  • Inductance Frequency Test: 1 kHz
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
