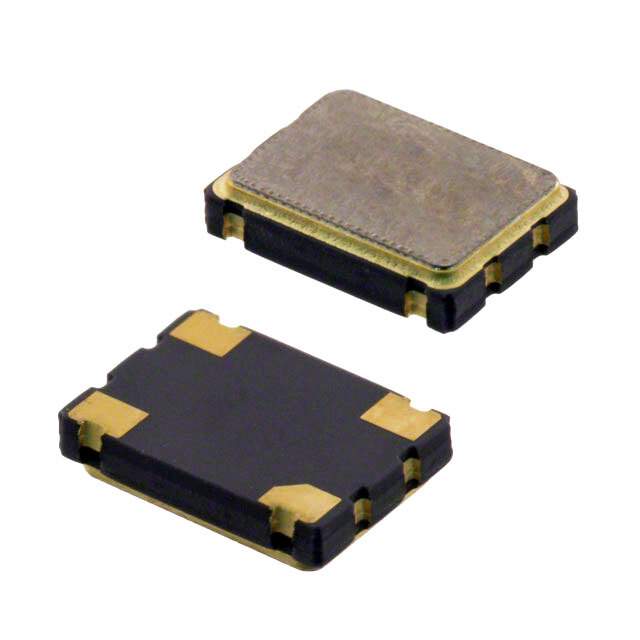

ASV-8.000MHZ-E-T Real Image
Same model may have multiple batches, images only for reference.

ASV-8.000MHZ-E-T

Part No ASV-8.000MHZ-E-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 8.0000MHZ HCMOS SMD / 8 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASV-8.000MHZ-E-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 8 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 10mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-10066-2,ASV8000MHZET,535-10066-6,535-10066-1
Standard Package 1,000
Win Source Part Number 1328190-ASV-8.000MHZ-E-T
Ultra Librarian 3D Model Ultra Librarian ASV-8.000MHZ-E-T CAD Model

Description

The ASV series oscillator from Abracon LLC is a standard XO type component used in various electronic circuits.

  • Manufacturer: Abracon LLC
  • Series: ASV
  • Type: XO (Standard)
  • Frequency: 8 MHz
  • Mounting Type: Surface Mount
  • Package: Reel - TR
  • Standard Package: 1,000
  • Height: 0.071 inches (1.80mm)
  • Frequency Stability: ±100ppm
  • Current Supply (Max): 10mA
  • Current Supply (Disable) (Max): 10μA
  • Voltage Supply: 3.3V
  • Operating Temperature: -20°C to 70°C
  • Dimensions: 0.276 inches L x 0.200 inches W (7.00mm x 5.08mm)
