Same model may have multiple batches, images only for reference.

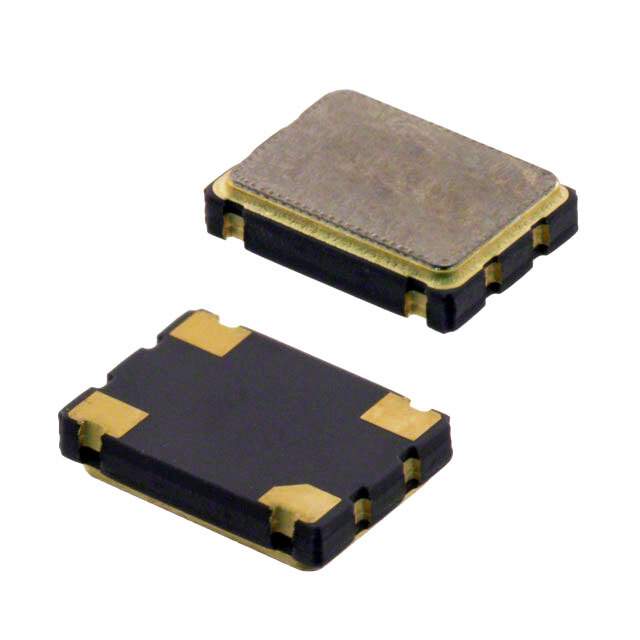

ASV-4.000MHZ-E-T Real Image
Same model may have multiple batches, images only for reference.

ASV-4.000MHZ-E-T

Part No ASV-4.000MHZ-E-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 4.0000MHZ HCMOS SMD / 4 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASV-4.000MHZ-E-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 4 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 10mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ASV4000MHZET,535-10064-6,535-10064-2,535-10064-1
Standard Package 1,000
Win Source Part Number 1328215-ASV-4.000MHZ-E-T
Ultra Librarian 3D Model Ultra Librarian ASV-4.000MHZ-E-T CAD Model

Description

The ASV series XO oscillator is a high-reliability device that is designed and manufactured by Abracon LLC.

  • Package: Reel
  • Mounting: Surface mount
  • Frequency: 4 MHz
  • Frequency Stability: ±100ppm
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 10mA
  • Output: HCMOS
  • Temperature Range: -20°C to 70°C
  • Resonator Type: Crystal-based
