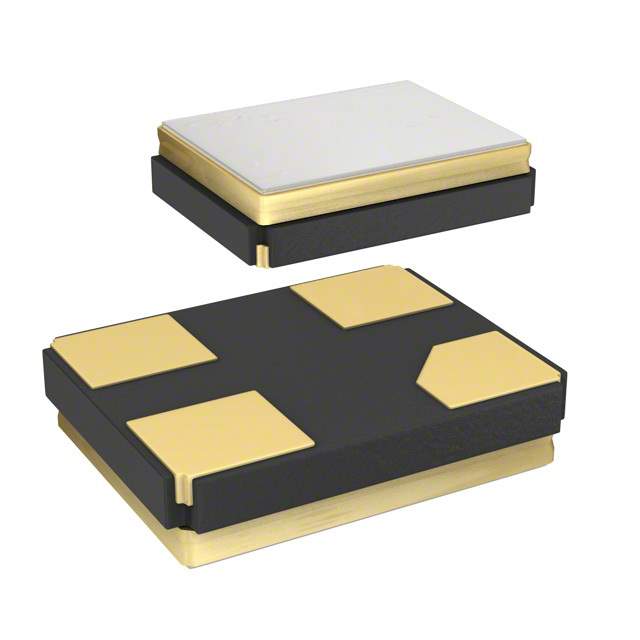

ASTX-H12-32.000MHZ-T Real Image
Same model may have multiple batches, images only for reference.

ASTX-H12-32.000MHZ-T

Part No ASTX-H12-32.000MHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC TCXO 32.0000MHZ HCMOS / 32 MHz TCXO HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASTX-H12-32.000MHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASTX-H12
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 32 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.037" (0.95mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1337238-ASTX-H12-32.000MHZ-T
Ultra Librarian 3D Model Ultra Librarian ASTX-H12-32.000MHZ-T CAD Model

Description

The ASTX-H12 series TCXO oscillator from Abracon LLC is a surface mount component that comes in a tape and reel package.

  • Length: 0.098 inches
  • Width: 0.079 inches
  • Seated Height: 0.037 inches
  • Frequency: 32 MHz
  • Output: HCMOS
  • Frequency Stability: ±2.5ppm
  • Maximum Supply Current: 6mA
  • Voltage Supply: 3.3V
  • Operating Temperature: -30°C to 75°C
