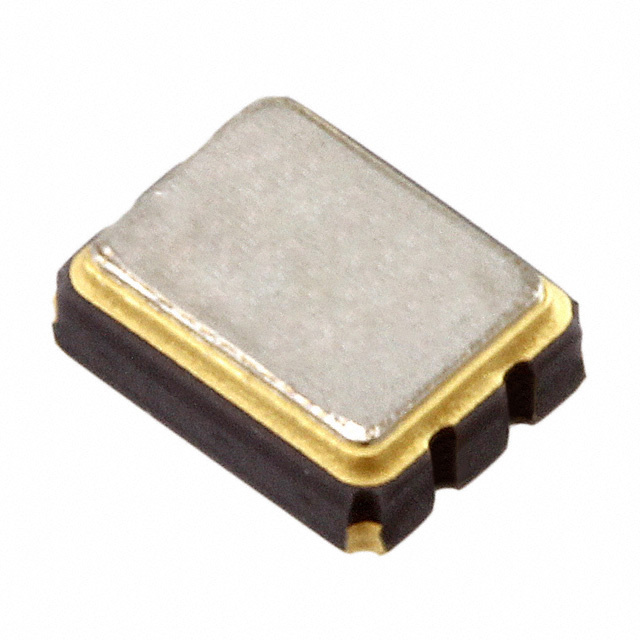

Same model may have multiple batches, images only for reference.
ASTX-H11-12.000MHZ-T Abracon LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ASTX-H11-12.000MHZ-T

Part No ASTX-H11-12.000MHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC TCXO 12.0000MHZ HCMOS
Datasheet
ASTX-H11-12.000MHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Base Resonator Crystal
Type TCXO
Frequency 12 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 4.8mA
Mounting Type Surface Mount
Case / Package 4-SMD, No Lead
Supplier Device Package 4-SMD (3.2x2.5)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043\
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1530011-ASTX-H11-12.000MHZ-T
Ultra Librarian 3D Model Ultra Librarian ASTX-H11-12.000MHZ-T CAD Model
