Same model may have multiple batches, images only for reference.

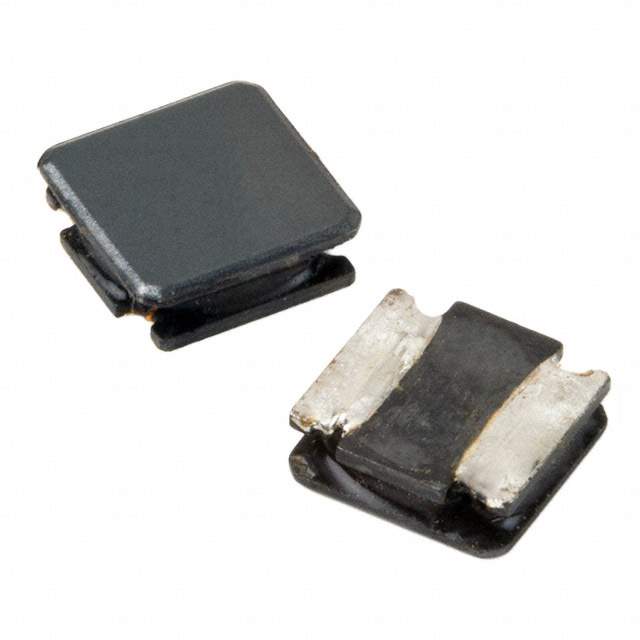

ASPI-0615FS-4R7M-T2 Real Image
Same model may have multiple batches, images only for reference.

ASPI-0615FS-4R7M-T2

Part No ASPI-0615FS-4R7M-T2
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.2A 43 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 2.2 A 43mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-0615FS
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.4A
Shielding Shielded
DC Resistance (DCR) 43mOhm
Temperature Range - Operating -25°C ~ 120°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.087" (2.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 535-10776-1,535-10776-2,ASPI0615FS4R7MT2,535-10776-6
Standard Package 3,000
Win Source Part Number 1162427-ASPI-0615FS-4R7M-T2
Ultra Librarian 3D Model Ultra Librarian ASPI-0615FS-4R7M-T2 CAD Model

Description

Abracon LLC's 1162427-ASPI-0615FS-4R7M-T2 is a drum core, wirewound type fixed inductor in tape and reel package. Abracon LLC

  • Type: Drum core, wirewound fixed inductor
  • Mounting: SMD (SMT)
  • Inductance: 4.7µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 43mOhm
  • Current Rating (Amps): 2.2A
  • Operating Temperature: -25°C ~ 120°C
  • Dimension: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height Seated (Maximum): 0.087" (2.20mm)
  • Supply and Demand Status: Sufficient
