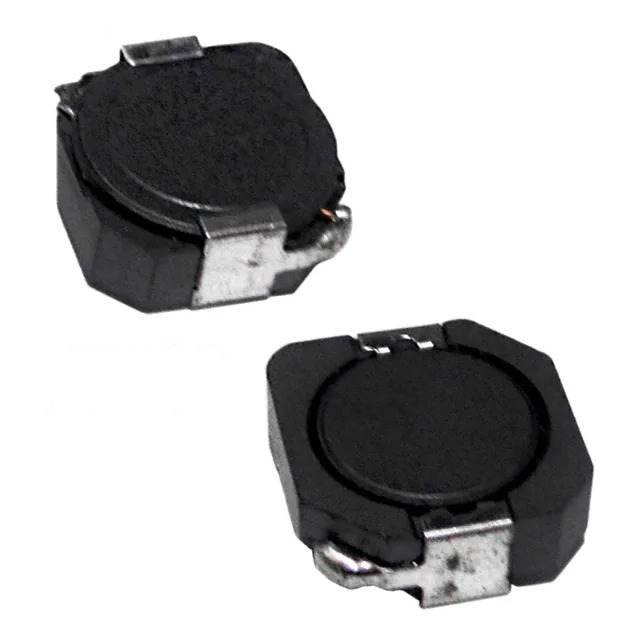

Same model may have multiple batches, images only for reference.

ASPI-0428S-820M-T

Name: ASPI-0428S-820M-T
Brand: Abracon LLC
SKU: 1370622
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ASPI-0428S-820M-T
Manufacturer	Abracon LLC
Catalog	Fixed Inductors
Description	FIXED IND 82UH 320MA 914.8 MOHM
Datasheet	ASPI-0428S-820M-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Abracon LLC
Series	ASPI-0428S
Package	Tape & Reel (TR)
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	82 µH
Tolerance	±20%
Current Rating (Amps)	320 mA
Current - Saturation (Isat)	-
Shielding	Shielded
DC Resistance (DCR)	914.8mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.185" L x 0.185" W (4.70mm x 4.70mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370622-ASPI-0428S-820M-T
Ultra Librarian 3D Model	Ultra Librarian ASPI-0428S-820M-T CAD Model

Alternative Products

Description

The ASPI-0428S series from Abracon LLC is a surface mount drum core, wirewound inductor with an inductance of 82 µH and a tolerance of ±20%.

Core Type: Drum Core, Wirewound
Mounting Type: Surface Mount
Inductance: 82 µH
Tolerance: ±20%
Package: Nonstandard
Size: 0.185" L x 0.185" W (4.70mm x 4.70mm)
Height: 0.118" (3.00mm)
Current Rating: 320 mA
DC Resistance (DCR): 914.8mOhm Max
Operating Temperature: -40°C to 85°C
Packaging: Tape and Reel
Product Status: Active
REACH Status: Unaffected
ECCN: EAR99
