Same model may have multiple batches, images only for reference.

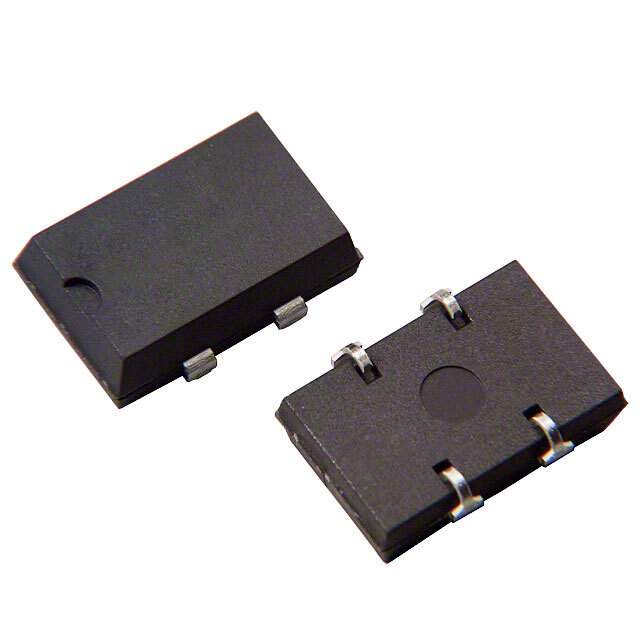

ASM-25.175MHZ-ET Real Image
Same model may have multiple batches, images only for reference.

ASM-25.175MHZ-ET

Part No ASM-25.175MHZ-ET
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC XO 25.175MHZ HCMOS TTL SMD
Datasheet
ASM-25.175MHZ-ET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ASM
Packaging Reel package
Part Status Obsolete(EOL)
Type XO (Standard)
Frequency 25.175MHz
Function Enable/Disable
Output HCMOS, TTL
Operating Supply Voltage 5V
Frequency Stability ±100ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 40mA
Mounting SMD
Package 4-SOJ, 5.08mm pitch
Dimension 0.551" L x 0.352" W (14.00mm x 8.95mm)
Height - Seated (Maximum) 0.185" (4.70mm)
Win Source Part Number 794545-ASM-25.175MHZ-ET
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ASM-25.175MHZ-ET CAD Model

Description

The Abracon LLC 794545-ASM-25.175MHZ-ET is a standard XO type electronic component that operates at a frequency of 25.175MHz.

  • Frequency: 25.175MHz
  • Frequency Stability: ±100ppm
  • Output: HCMOS, TTL
  • Package: 4-SOJ, 5.08mm pitch
  • Mounting Type: SMD
  • Operating Temperature Range: -20°C to 70°C
  • Operating Supply Voltage: 5V
  • Series: ASM
  • Dimensions: 0.551" L x 0.352" W (14.00mm x 8.95mm), Seated Height 0.185" (4.70mm)
  • Maximum Supply Current: 40mA
  • Obsolete: Yes (EOL)
