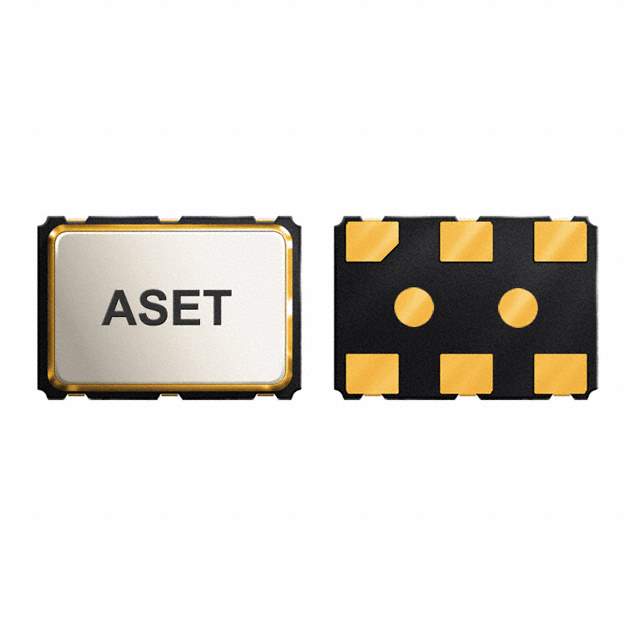

ASET-16.000MHZ-Y-T Real Image
Same model may have multiple batches, images only for reference.

ASET-16.000MHZ-Y-T

Part No ASET-16.000MHZ-Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 16.0000MHZ CMOS SMD / 16 MHz XO (Standard) CMOS Oscillator 3V Enable/Disable 6-SMD, No Lead
Datasheet
ASET-16.000MHZ-Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASET
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator Crystal
Type XO (Standard)
Frequency 16 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1042016-ASET-16.000MHZ-Y-T
Ultra Librarian 3D Model Ultra Librarian ASET-16.000MHZ-Y-T CAD Model

Description

The electronic component with Win Source Part Number 1042016-ASET-16.000MHZ-Y-T is an ASET XO (Standard) oscillator with a frequency of 16 MHz.

  • Frequency: 16 MHz
  • Operating Temperature: -40°C ~ 85°C
  • Mounting: SMD (SMT)
  • Voltage Supply: 3V
  • Frequency Stability: ±10ppm
  • Current Supply: 7mA
  • Current Supply (Disable): 10µA
  • Height: 0.047" (1.20mm)
  • Package: 6-SMD, No Lead
  • HTSUS: 8542.39.0001
  • ECCN: EAR99
  • Alternative Parts: DSC1001BL5-016.0000, DSC1001DL5-016.0000, DSC1001BI5-016.0000T
