Same model may have multiple batches, images only for reference.

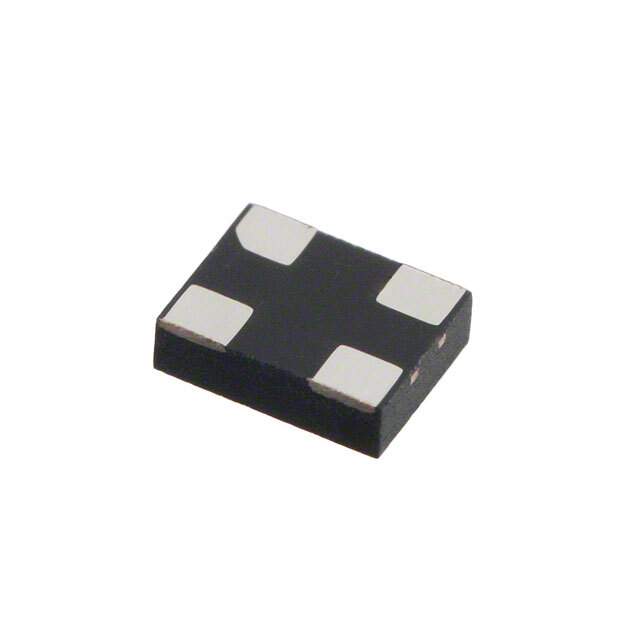

ASEMB-12.000MHZ-XY-T Real Image
Same model may have multiple batches, images only for reference.

ASEMB-12.000MHZ-XY-T

Part No ASEMB-12.000MHZ-XY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 12.0000MHZ CMOS SMD / 12 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-12.000MHZ-XY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 12 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1349002-ASEMB-12.000MHZ-XY-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-12.000MHZ-XY-T CAD Model

Description

The ASEMB-12.000MHZ-XY-T is a standard XO type oscillator that belongs to the ASEMB, Pure Silicon™ series of Abracon LLC. The product is the ASEMB-12.000MHZ-XY-T.

  • Series: ASEMB, Pure Silicon™
  • Type: XO (Standard)
  • Package: Tape and Reel
  • Package/Case: 4-SMD, No Lead
  • Frequency Output: 12 MHz
  • Frequency Stability: ±10ppm
  • Maximum Supply Current: 16mA
  • Voltage Supply: 1.8V to 3.3V
  • Output: CMOS
  • Temperature Range: -40°C to 105°C
  • Function: Standby (Power Down)
