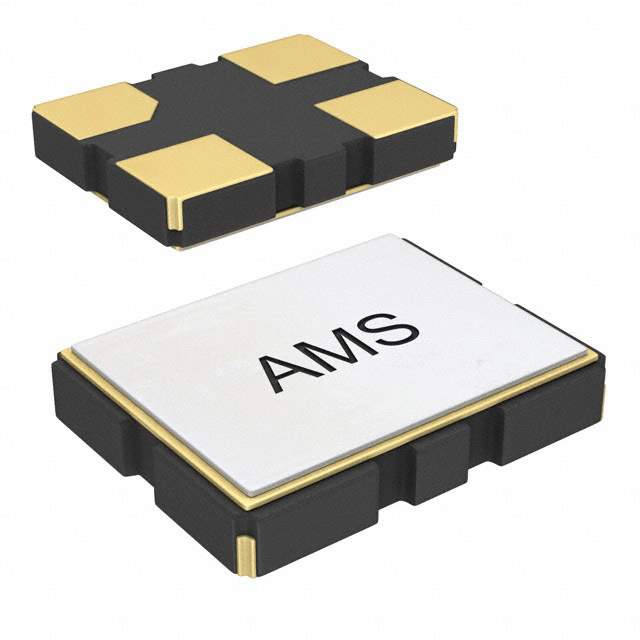

ASE-24.576MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE-24.576MHZ-LC-T

Part No ASE-24.576MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 24.576 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 13mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
Other Names 535-9567-1,ASE-24.576MHZ-L-C-T,ASE24576MHZLCT,535-9567-6,Q5334470AA,535-9567-2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284964-ASE-24.576MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE-24.576MHZ-LC-T CAD Model

Description

The ASE-24.576MHZ-LC-T electronic component is an XO (Standard) oscillator that belongs to the oscillators category and is packaged in tape and reel.

  • Win Source Part Number: 1284964
  • Output: CMOS output
  • Frequency: 24.576MHz
  • Operating Temperature Range: -40°C to 85°C
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 13mA
  • Current Supply (disable): 10μA
