Same model may have multiple batches, images only for reference.

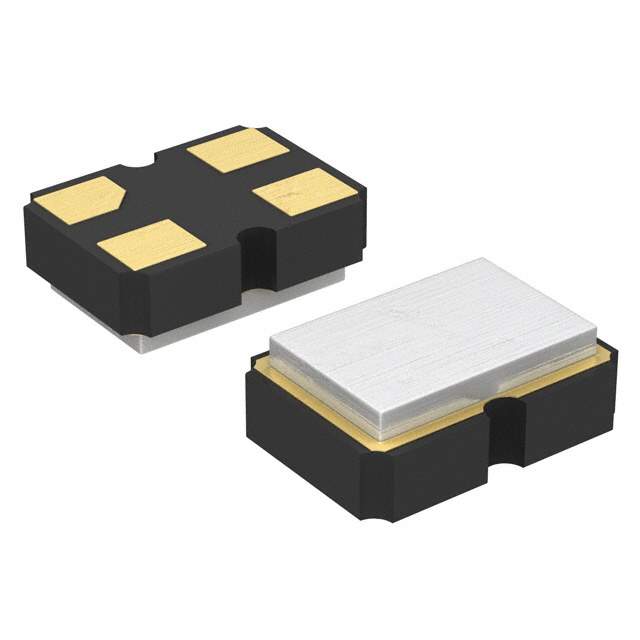

ASD1-33.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASD1-33.000MHZ-LR-T

Part No ASD1-33.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 33.0000MHZ HCMOS SMD / 33 MHz XO (Standard) HCMOS Oscillator 3V Enable/Disable 4-SMD, No Lead
Datasheet
ASD1-33.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASD
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 33 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 20µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1091987-ASD1-33.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASD1-33.000MHZ-LR-T CAD Model

Description

The Abracon LLC ASD1-33.000MHZ-LR-T crystal oscillator is a high precision oscillator that is suitable for use in circuits that require a 33 MHz frequency.

  • Frequency: 33 MHz
  • Frequency Stability: ±25ppm
  • Power Consumption: Low
  • Current Consumption: 6mA
  • Package: 4-SMD, no lead
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
