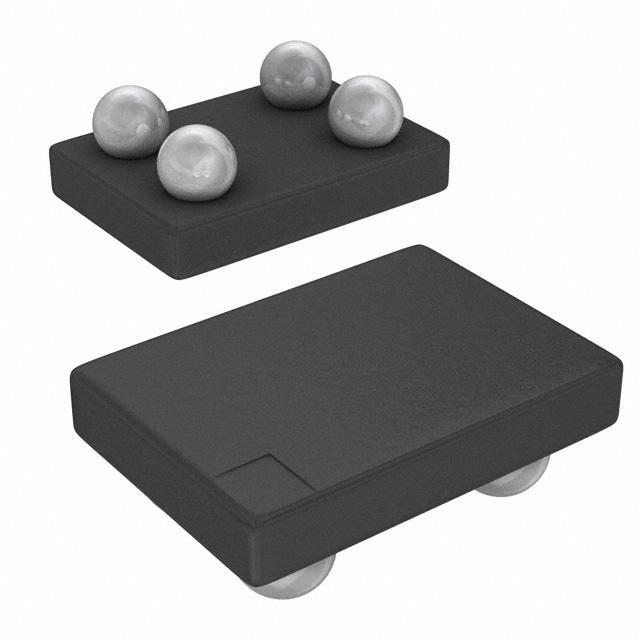

Same model may have multiple batches, images only for reference.
ASCSM-50.000MHZ-LR-T Abracon LLC
Same model may have multiple batches, images only for reference.

ASCSM-50.000MHZ-LR-T

Part No ASCSM-50.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC MEMS 50.000MHZ CMOS SMD / Oscillator MEMS 50MHz ±25ppm (Stability) 15pF LVCMOS 55% 1.8V/2.5V/3.3V 4-Pin BGA SMD T/R
Datasheet
ASCSM-50.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series Pure Silicon ASCSM
Packaging Reel package
Part Status Obsolete(EOL)
Type MEMS (Silicon)
Frequency 50MHz
Function Enable/Disable
Output CMOS
Operating Supply Voltage 1.7 V ~ 3.6 V
Frequency Stability ±25ppm
Operating Temperature Range -40°C ~ 85°C
Maximum Supply Current 6.5mA
Mounting SMD
Package 4-UFBGA, CSPBGA
Dimension 0.070" L x 0.049" W (1.79mm x 1.25mm)
Height - Seated (Maximum) 0.027" (0.69mm)
Current - Supply (Disable) (Maximum) 15μA
Win Source Part Number 771905-ASCSM-50.000MHZ-LR-T
Popularity Medium
Supply and Demand Status Limited
Family Name ASCSM
Introduction Date May 07, 2008
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ASCSM-50.000MHZ-LR-T CAD Model

Description

Abracon LLC's Pure Silicon ASCSM 50MHz MHz Crystal is a high-quality crystal designed for use in various electronic devices.

  • Frequency Stability: ±25ppm
  • Maximum Supply Current: 6.5mA
  • ESR: 50 Ohm
  • Output Mode: CMOS
  • Temperature Range: -40°C to 85°C
  • Package: 4-UFBGA, CSPBGA
  • Height (Seated): 0.027" (0.69mm)
  • Popularity: Medium
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
