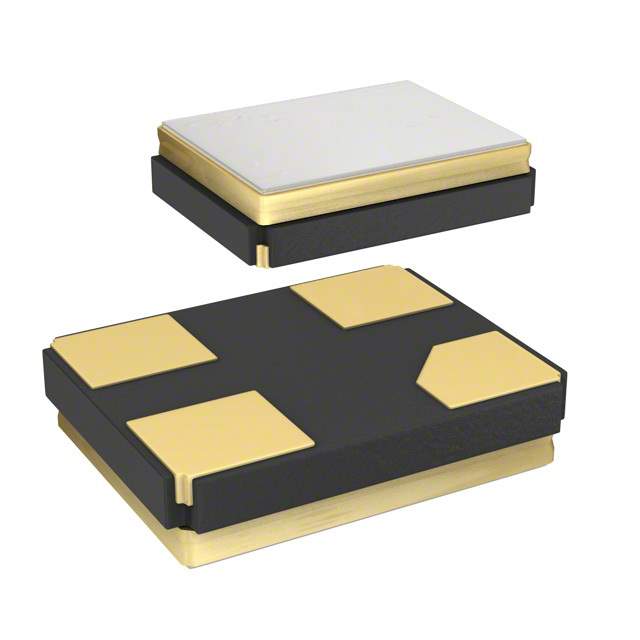

ASCO-25.000MHZ-EK-T3 Real Image
Same model may have multiple batches, images only for reference.

ASCO-25.000MHZ-EK-T3

Part No ASCO-25.000MHZ-EK-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ CMOS SMD / 25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
ASCO-25.000MHZ-EK-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASCO
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±30ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 6mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.028" (0.70mm)
Standard Package 3,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338838-ASCO-25.000MHZ-EK-T3
Ultra Librarian 3D Model Ultra Librarian ASCO-25.000MHZ-EK-T3 CAD Model

Description

The ASCO series XO (standard) crystal oscillator is a high-quality electronic component designed for use in various applications such as oscillators, resonators, and crystals.

  • Mounting Type: Surface Mount
  • Package Size: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Seated Height: 0.028" (0.70mm)
  • Frequency: 25 MHz
  • Frequency Stability: ±30ppm
  • Output: CMOS
  • Voltage Supply: 3.3V
  • Function: Enable/Disable
  • Maximum Current Supply: 6mA
