Same model may have multiple batches, images only for reference.

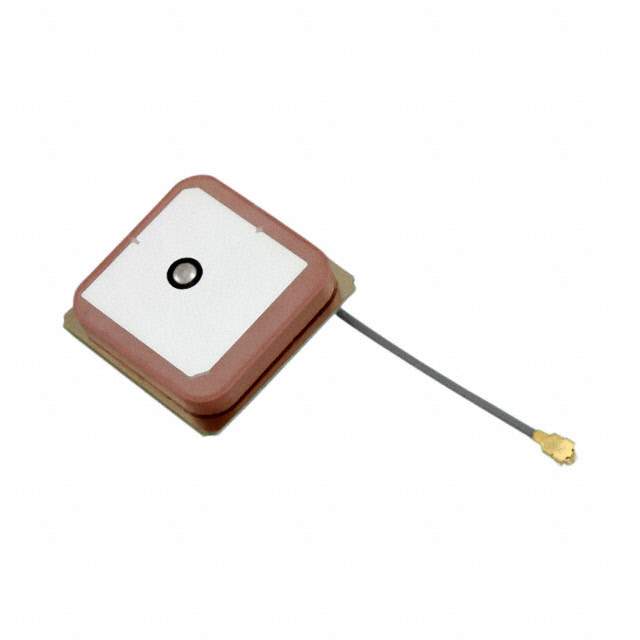

APAM2764YK0175 Real Image
Same model may have multiple batches, images only for reference.

APAM2764YK0175

Part No APAM2764YK0175
Manufacturer Abracon LLC
Catalog RF Antennas
Description ACTIVE INTRNL ANT 1575.42MHZ GPS / GPS Receiver 1576.44MHz 3.3V Tray
Datasheet
APAM2764YK0175 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Abracon LLC
Packaging Tray
Frequency Group UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.573GHz ~ 1.578GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Gain 2.5dBic
Features LNA
Termination Cable (50mm) - IPEX
Mounting SMD
Height (Maximum) 0.276" (7.00mm)
Applications GPS
Win Source Part Number 768443-APAM2764YK0175
Popularity Medium
Supply and Demand Status Limited
Family Name APAM2764YK0175
Introduction Date June 18, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian APAM2764YK0175 CAD Model

Description

The Abracon APAM2764YK0175 is a ceramic patch antenna suitable for GPS applications.

  • Frequency Range: 1.573GHz to 1.578GHz
  • Frequency (Center/Band): 1.575GHz
  • Gain: 2.5dBic
  • VSWR: 1.5
  • Package Type: Tray
  • Termination: Cable (50mm) - IPEX
  • Popularity: Yes
  • Supply and Demand Status: Limited
