Same model may have multiple batches, images only for reference.

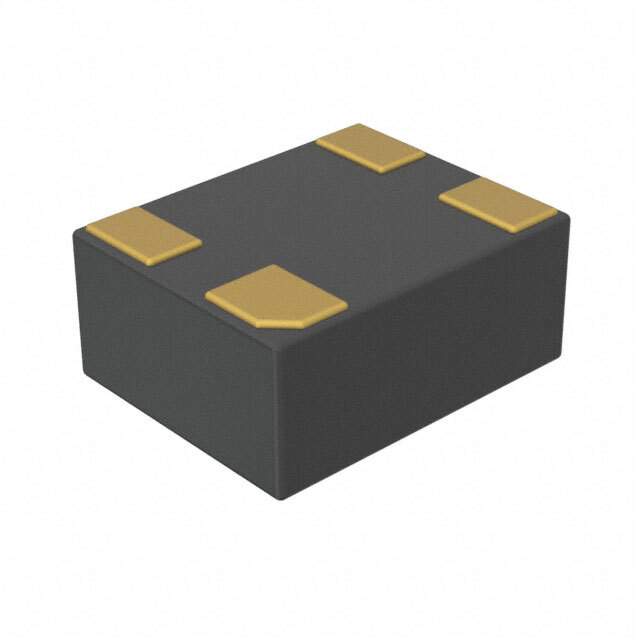

AMPMAEB-2.5000T Real Image
Same model may have multiple batches, images only for reference.

AMPMAEB-2.5000T

Part No AMPMAEB-2.5000T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 2.5000MHZ CMOS SMD / 2.5 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
Datasheet
AMPMAEB-2.5000T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 2.5 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
Current - Supply (Disable) (Max) 160µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1181856-AMPMAEB-2.5000T
Ultra Librarian 3D Model Ultra Librarian AMPMAEB-2.5000T CAD Model

Description

The Abracon LLC electronic component with part number 1181856-AMPMAEB-2.5000T is a crystal oscillator (XO) belonging to the AMPM series.

  • Frequency: 2.5 MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Voltage Supply: 1.71V ~ 3.63V
  • Height: 0.035" (0.89mm)
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
