Same model may have multiple batches, images only for reference.

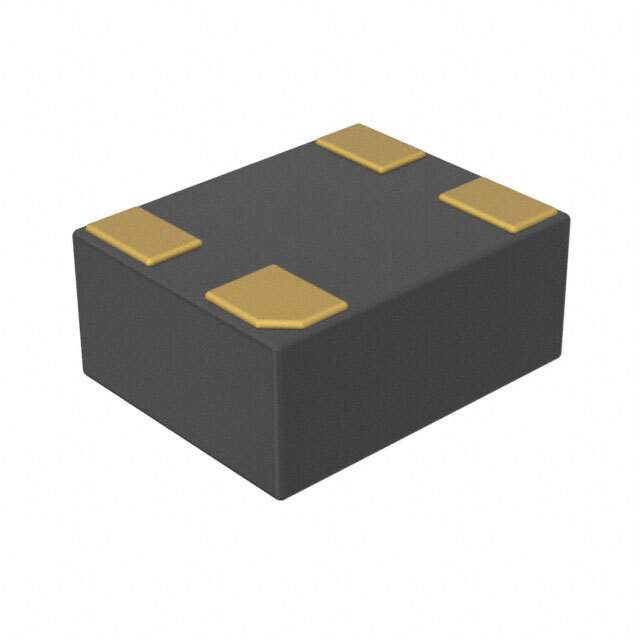

AMPMADC-8.0000T Real Image
Same model may have multiple batches, images only for reference.

AMPMADC-8.0000T

Part No AMPMADC-8.0000T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 8.0000MHZ CMOS SMD / 8 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMPMADC-8.0000T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 8 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1043396-AMPMADC-8.0000T
Ultra Librarian 3D Model Ultra Librarian AMPMADC-8.0000T CAD Model

Description

The AMPM series XO oscillator is a high-performance device that is designed and manufactured by Abracon LLC.

  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Frequency: 8 MHz
  • Frequency Stability: ±25ppm
  • Voltage Supply: 1.71V to 3.63V
  • Current Supply (Max): 1.3mA
  • Output: CMOS
  • Temperature Range: -20°C to 70°C
  • Resonator Type: MEMS
