Same model may have multiple batches, images only for reference.

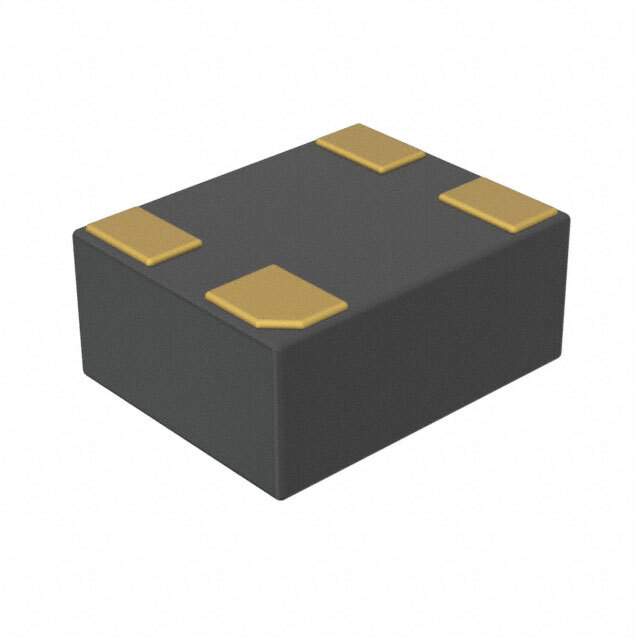

AMPMADA-32.0000 Real Image
Same model may have multiple batches, images only for reference.

AMPMADA-32.0000

Part No AMPMADA-32.0000
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 32.0000MHZ CMOS SMD / 32 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMPMADA-32.0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency 32 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 100
Win Source Part Number 1043337-AMPMADA-32.0000
Ultra Librarian 3D Model Ultra Librarian AMPMADA-32.0000 CAD Model

Description

The AMPMADA-32.0000 is a standard XO oscillator from Abracon LLC.

  • Output: CMOS
  • Function: Enable/Disable
  • Supply Voltage: 1.71V ~ 3.63V
  • Frequency: 32 MHz
  • Frequency Stability: ±25ppm
  • Package/Case: 4-SMD, no lead
  • Height Seated: 0.035” (0.89mm)
  • Operating Temperature: -20°C ~ 70°C
  • Suitable For: Use in oscillator applications
  • MSL Level: 1 (Unlimited)
