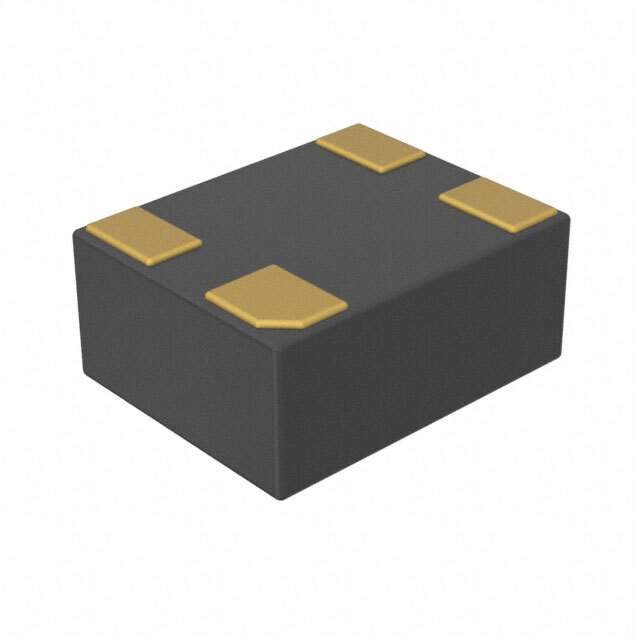

AMPDAFH-A04 Real Image
Same model may have multiple batches, images only for reference.

AMPDAFH-A04

Part No AMPDAFH-A04
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC MEMS XO DUAL OUTPUT / XO (Standard) Pin Configurable Oscillator 1.71V ~ 3.63V 4-VFLGA
Datasheet
AMPDAFH-A04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Pin Configurable/Selectable Oscillators
Mfr Abracon LLC
Series AMPD
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 74.1758MHz, 74.25MHz
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height 0.035" (0.89mm)
Package / Case 4-VFLGA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 100
Win Source Part Number 1061634-AMPDAFH-A04
Ultra Librarian 3D Model Ultra Librarian AMPDAFH-A04 CAD Model

Description

The AMPDAFH-A04 manufactured by Abracon LLC is a high-quality electronic component that belongs to the Crystals, Oscillators, Resonators category.

  • Component Category: Crystals, Oscillators, Resonators
  • Oscillator Type: Pin configurable/selectable oscillator
  • Series: AMPD
  • Frequency Stability: ±25ppm
  • Current Supply: 1.3mA (Typ)
  • Voltage Supply: 1.71V to 3.63V
  • Package/Case: 4-VFLGA
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.079” L x 0.063” W (2.00mm x 1.60mm)
  • Frequency Output: 74.1758MHz, 74.25MHz
  • Manufacturer's Homepage: www.abracon.com
