Same model may have multiple batches, images only for reference.

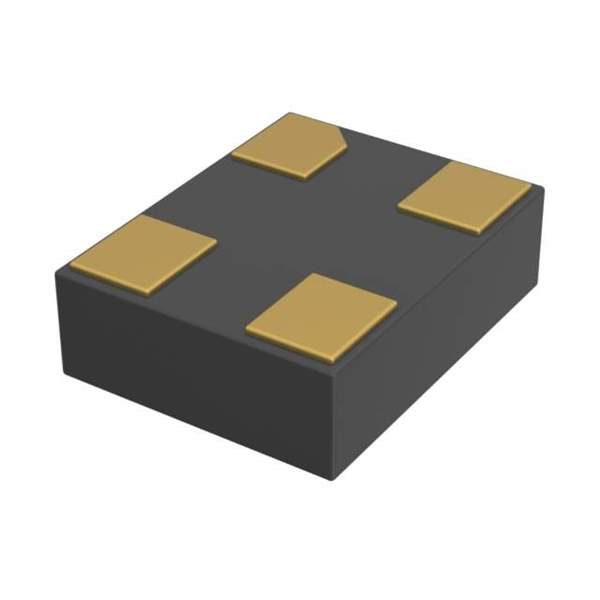

AMJMEFA-84.0000T3 Real Image
Same model may have multiple batches, images only for reference.

AMJMEFA-84.0000T3

Part No AMJMEFA-84.0000T3
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 84.0000MHZ CMOS SMD / 84 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-VDFN
Datasheet
AMJMEFA-84.0000T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMJM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 84 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-VDFN
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 80µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1058480-AMJMEFA-84.0000T3
Ultra Librarian 3D Model Ultra Librarian AMJMEFA-84.0000T3 CAD Model

Description

The AMJMEFA-84.0000T3 is a standard type oscillator with a 4-VDFN package.

  • Frequency: 84 MHz
  • Frequency Stability: ±25ppm
  • Output: CMOS
  • Function: enable/disable
  • Height: 0.035 inches
  • Standard Package: includes 3,000 items
  • Mounting: SMD (SMT)
  • Current Supply (max): 3mA (typ)
  • Current Supply (disable) (max): 80µA
  • Voltage Supply: 1.71V to 3.63V
  • Operating Temperature Range: -40°C to 85°C
  • Applications: suitable for use in electronic devices that require an oscillator
