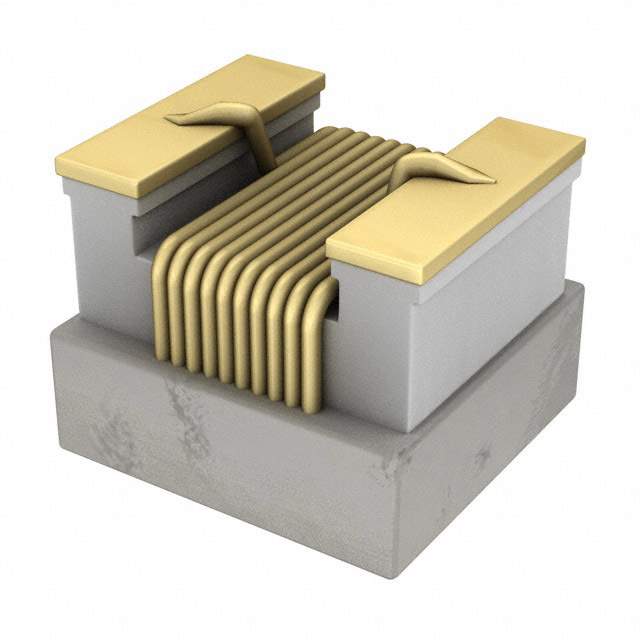

Same model may have multiple batches, images only for reference.

AISC-1008F-1R2G-T

Name: AISC-1008F-1R2G-T
Brand: Abracon LLC
SKU: 1150228
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	AISC-1008F-1R2G-T
Manufacturer	Abracon LLC
Catalog	Fixed Inductors
Description	FIXED IND 1.2UH 650MA 800MOHM SM / 1.2 µH Unshielded Drum Core, Wirewound Inductor 650 mA 800mOhm Max 1008 (2520 Metric)
Datasheet	AISC-1008F-1R2G-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Abracon LLC
Series	AISC-1008F
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1.2 µH
Tolerance	±2%
Current Rating (Amps)	650 mA
Shielding	Unshielded
DC Resistance (DCR)	800mOhm Max
Q @ Freq	37 @ 50MHz
Frequency - Self Resonant	250MHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	7.9 MHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Dimension	0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max)	0.090" (2.29mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	AISC-1008F-1R2G-TTR,-AISC-1008F-1R2G-TTR,AISC1008F1R2GT,-AISC-1008F-1R2G-TCT,AISC-1008F-1R2G-TCT
Standard Package	2,000
Win Source Part Number	1150228-AISC-1008F-1R2G-T
Ultra Librarian 3D Model	Ultra Librarian AISC-1008F-1R2G-T CAD Model

Alternative Products

Description

The AISC-1008F-1R2G-T is a drum core, wirewound fixed inductor from Abracon LLC.

Inductance: 1.2 µH
Tolerance: ±2%
Package: Tape & reel (TR), cut tape (CT)
Shielding: Unshielded
Mounting Type: SMD (SMT)
Core Material: Ferrite
Maximum Height Seated: 0.090" (2.29mm)
Standard Package: 2,000
Q @ Freq: 37 @ 50MHz
Frequency Self-Resonant: 250MHz
Package/Case: 1008 (2520 Metric)
DC Resistance (DCR): 800mOhm Max
Supplier Device Package: 1008 (2520 Metric)
Temperature Range: -40°C ~ 85°C
Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
MSL Level: 1 (Unlimited)
Current Rating (Amps): 650 mA
Inductance Frequency-Test: 7.9 MHz
REACH: Unaffected
HTSUS: 8504.50.8000
